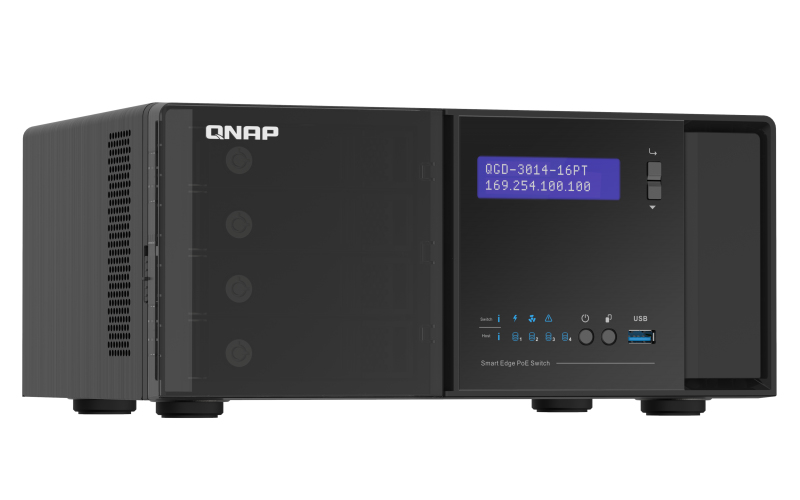

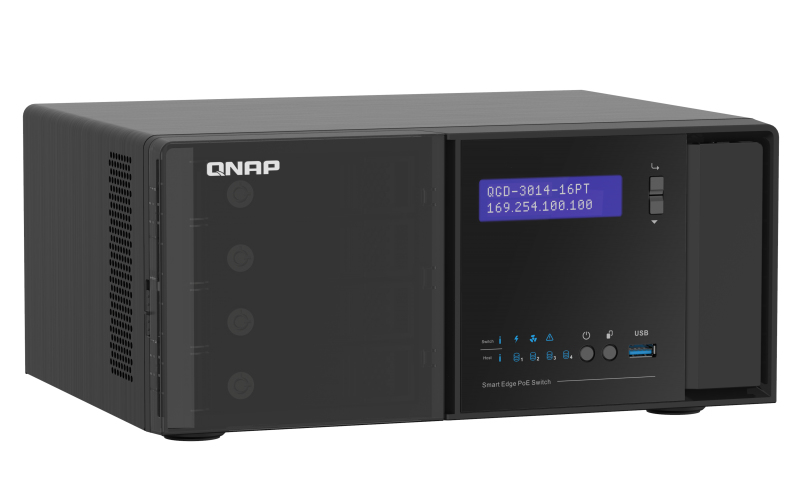

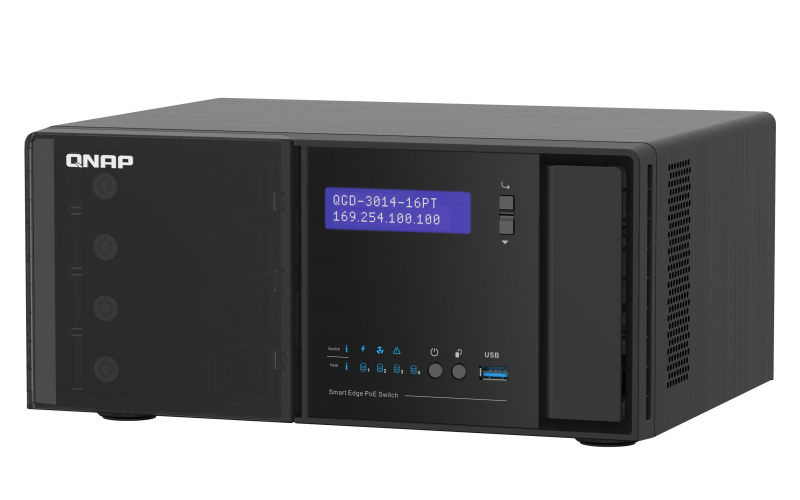

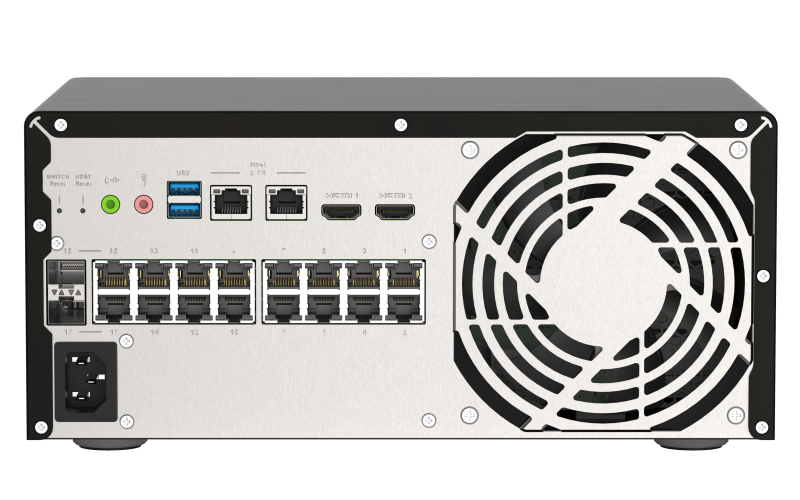

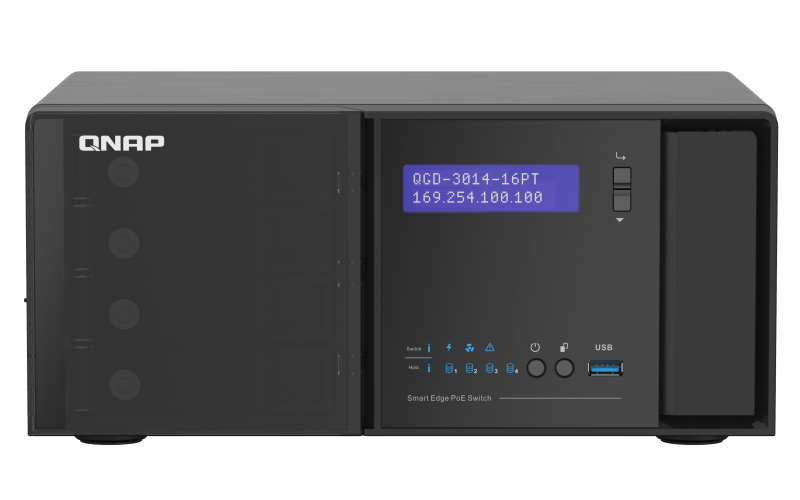

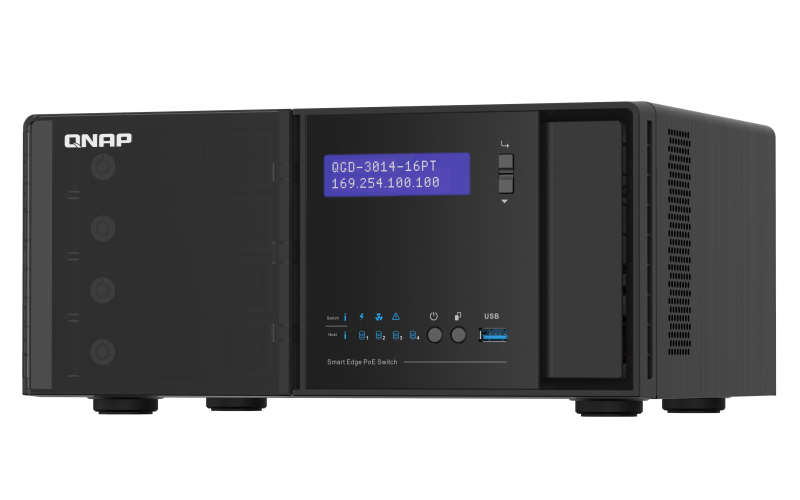

QNAP QGD-3014-16PT-8G network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

QGD-3014-16PT-8G network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Model QGD-3014-16PT-8GEAN 885022020447

70 specifications

ProcessorIntel Celeron J4125
Memory8192 MB
Weight4.08 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity14

See all specifications

Overview

Processor: Intel Celeron J4125
Memory: 8192 MB
Weight: 4.08 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 14

Brand: QNAP
Category: Network Switch
Model: QGD-3014-16PT-8G
Part number: QGD-3014-16PT-8G
EAN / UPC: 885022020447, 4713213518427
Also known as: QNAP QGD-3014-16PT-8G network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

70 specifications in 18 groups

Management features

Specification	Value
Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	14
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	14
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2
HDMI stacking ports	2

Network

Specification	Value
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE-X

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Throughput	16 Gbit/s
Jumbo frames support	Yes

Security

Specification	Value
DHCP features	DHCP client, DHCP server
IGMP snooping	Yes
Loop protection	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS

Multicast features

Specification	Value
Multicast MAC address table	8000 entries

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Reset button	Yes
LED indicators	Activity, Fault, Link, PoE, Speed
Number of fans	1 fan(s)
Electromagnetic compatibility	CLASS A

Performance

Specification	Value
Built-in processor	Yes
Processor manufacturer	Intel
Processor model	Intel Celeron J4125
Processor frequency	2000 MHz
Memory type	DDR4-SDRAM
Internal memory	8192 MB
Flash memory	4000 MB

Power

Specification	Value
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	250 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	140 W

Other features

Specification	Value
I/O ports	3x USB 3.2 Gen 1, 2x 2.5GbE
Warranty period	2 year(s)

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	295 mm
Depth	222.8 mm
Height	130 mm
Weight	4.08 kg

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick start guide	Yes

Packaging data

Specification	Value
Package type	Box
Package width	380 mm
Package depth	340 mm
Package height	250 mm
Package weight	5.34 kg

Certificates

Specification	Value
Certification	CE, FCC, VCCI, BSMI

Logistics data

Specification	Value
Country of origin	Taiwan
Harmonized System (HS) code	85176990
Products per master (outer) case	2 pc(s)
