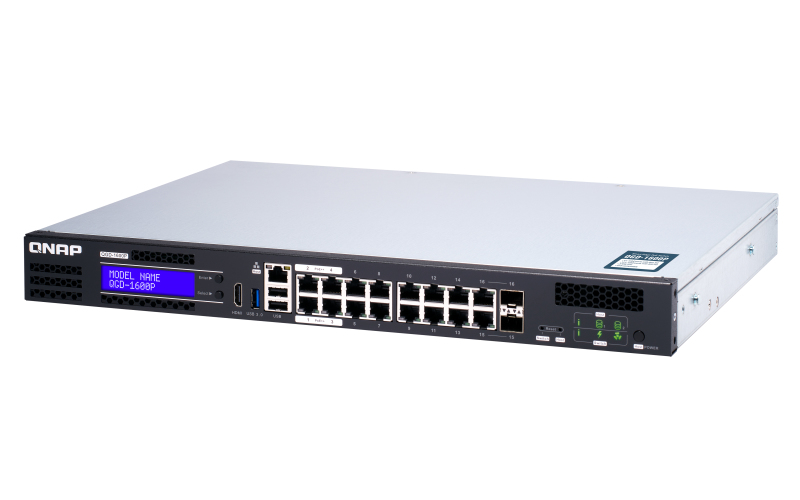

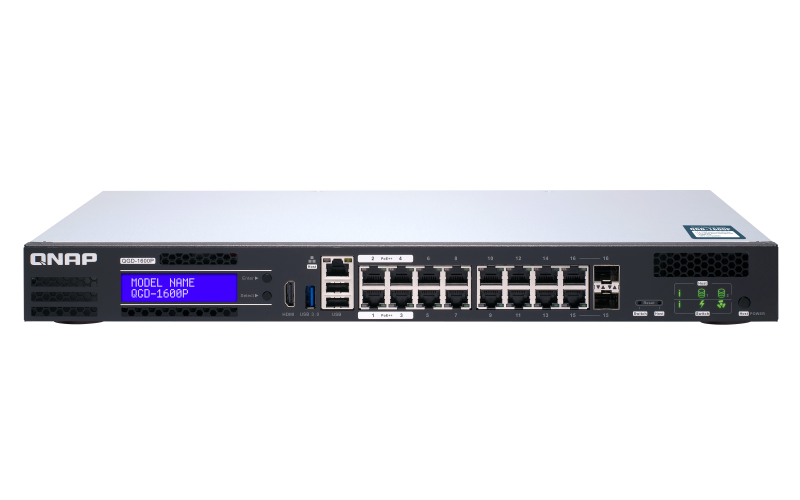

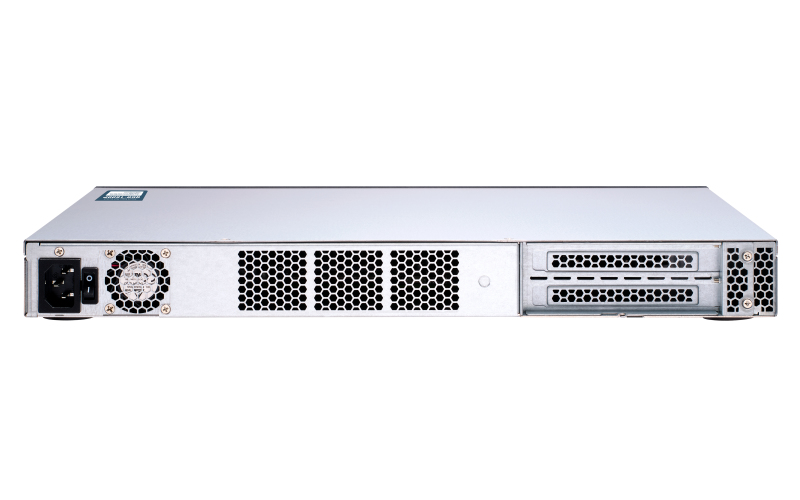

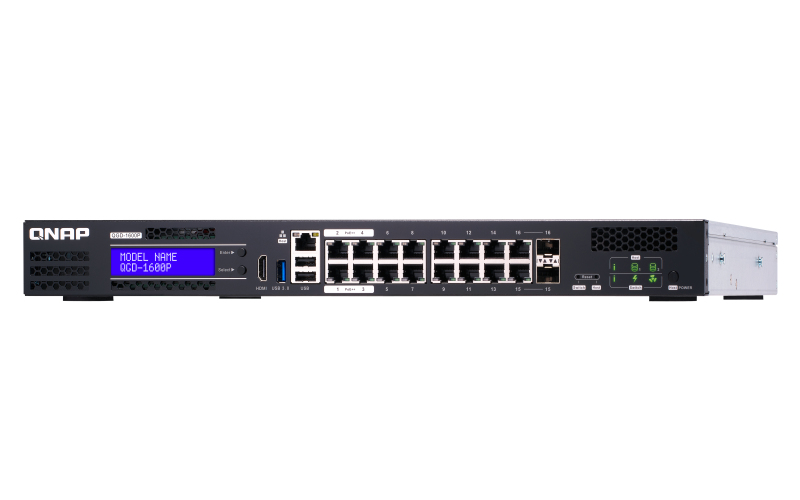

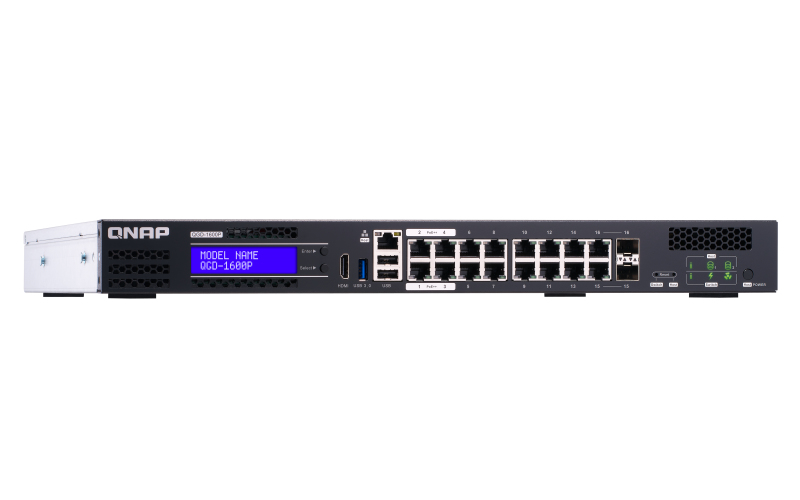

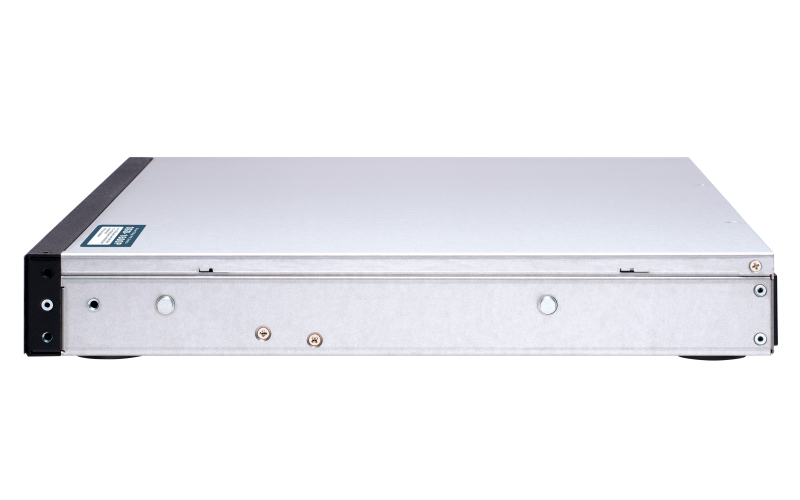

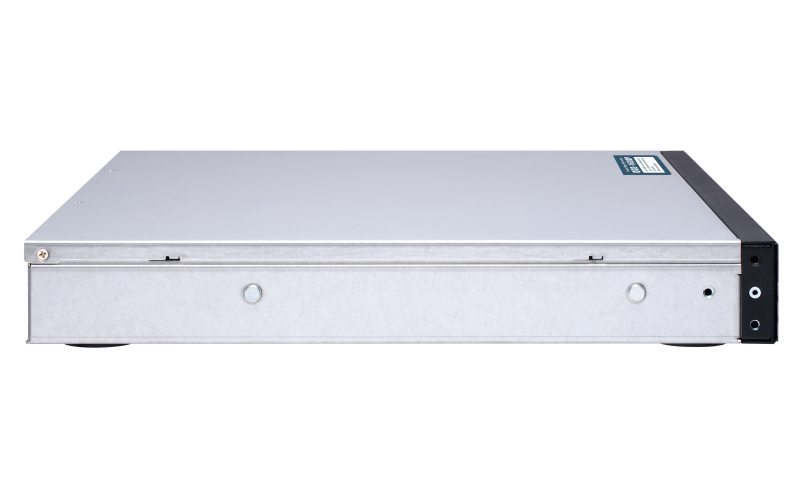

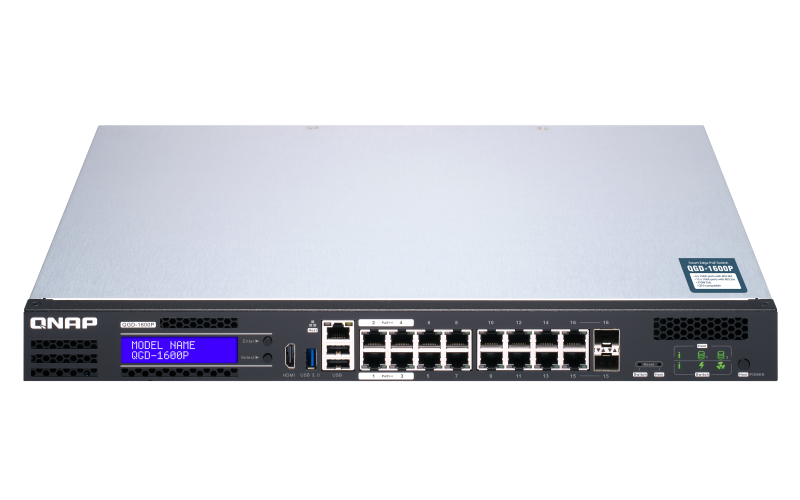

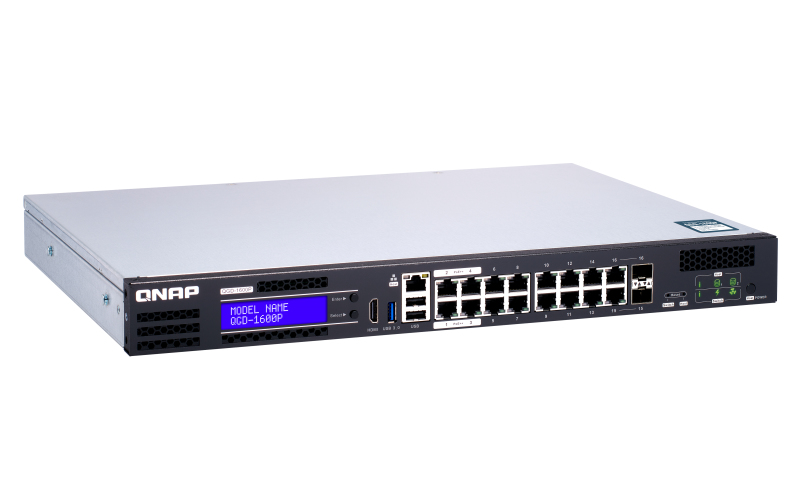

QGD-1600P Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey
Model QGD-1600PPart no. QGD-1600P-8G/3.84TB-IW110EAN 5050914168117
72 specifications
- ProcessorIntel Celeron J4115
- Memory4096 MB
- ConnectivityWired
- Type1U
- Weight4.41 kg
- ColourBlack, Grey
Overview
- Processor
- Intel Celeron J4115
- Memory
- 4096 MB
- Connectivity
- Wired
- Type
- 1U
- Weight
- 4.41 kg
- Colour
- Black, Grey
- Brand
- QNAP
- Category
- Network Switch
- Model
- QGD-1600P
- Part numbers
- QGD-1600P-8G/3.84TB-IW110, QGD-1600P-4G, QGD-1600P-8G, QGD-1600P-4G/1.92TB-IW110, QGD-1600P-4G/7.68TB-IW110, QGD-1600P-4G/3.84TB-IW110 +6 more
- EAN / UPC
- 5050914168117, 4713213516195, 4713213516119, 5050914168056 +8 more
- Also known as
- QNAP QGD-1600P Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey
Specifications
72 specifications in 18 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 14 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 14 |
| Combo SFP ports quantity | 2 |
| HDMI stacking ports | 1 |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000Base-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Throughput | 16000 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast MAC address table | 8000 entries |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black, Grey |
| Reset button | Yes |
| LED indicators | Activity, Fan fail, Link, PoE, Speed |
| Number of fans | 2 fan(s) |
| Electromagnetic compatibility | CLASS A, UL62368 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor model | Intel Celeron J4115 |
| Processor frequency | 1800 MHz |
| Internal memory | 4096 MB |
| Flash memory | 4000 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 418 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 360 W |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 14 |
| Slot type | PCIe |
| Expansion slots | 2x PCIe Gen2 (x2) |
| I/O ports | 1x USB 3.2 Gen 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 436.2 mm |
| Depth | 326.2 mm |
| Height | 47.2 mm |
| Weight | 4.41 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.56 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI, BSMI RCM, CCC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
