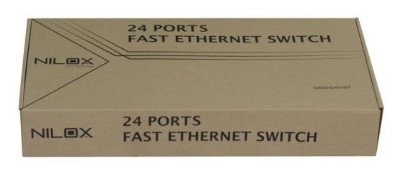

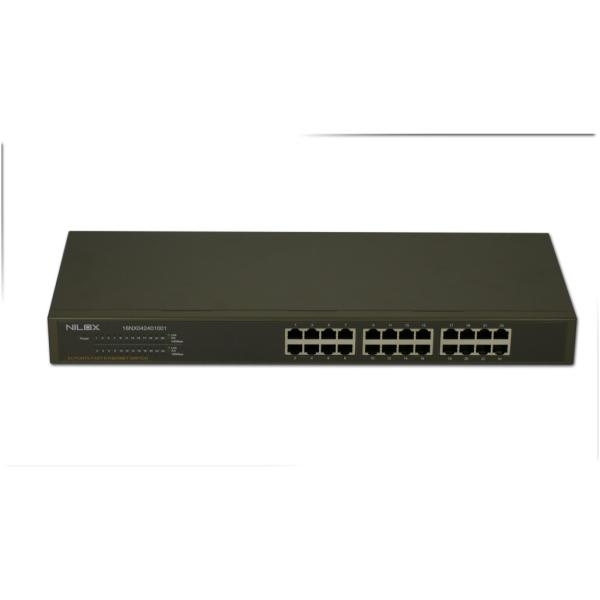

Nilox 16NX042401001 network switch Unmanaged
Model 16NX042401001
20 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight2.5 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- Networking standardsIEEE 802.3u, IEEE 802.3x
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 2.5 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Networking standards
- IEEE 802.3u, IEEE 802.3x
- Brand
- Nilox
- Category
- Network Switch
- Model
- 16NX042401001
- Part number
- 16NX042401001
- Also known as
- Nilox 16NX042401001 network switch Unmanaged
Specifications
20 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u, IEEE 802.3x |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Switching protocols | IPv4 |
Design
| Specification | Value |
|---|---|
| Stackable | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Redundant power supply (RPS) support | No |
| Input voltage | 220 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 440.00 x 180.00 x 44.00 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Wi-Fi | No |
| Connectivity LEDs | Link/Act |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE RoHS FCC En60950:2006 En55022:2006 EN61000-3-2 EN61000-3-3 En55024 A1, A2 |
What people say
Reviews & ratings
Nilox 16NX042401001 network switch Unmanaged
No reviews yet
Be the first to tell others how Nilox 16NX042401001 network switch Unmanaged works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Nilox 16NX042401001 network switch Unmanaged
All network switch comparisons- Nilox 16NX042401001 network switch Unmanaged vsNilox 16NX0408PE001 network switch Power over Ethernet (PoE)Compare specs
- Nilox 16NX042401001 network switch Unmanaged vsNilox 16NX040501002 network switch BlueCompare specs
- Nilox 16NX042401001 network switch Unmanaged vsNilox 16NX042402001 network switch UnmanagedCompare specs

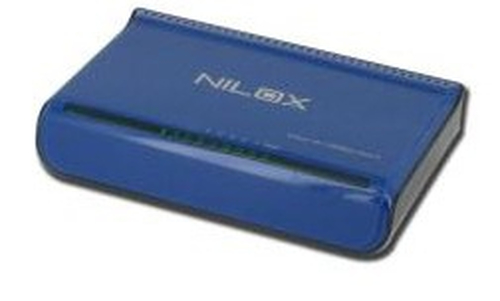

- Nilox 16NX042401001 network switch Unmanaged vsNilox Switch 5-portCompare specs

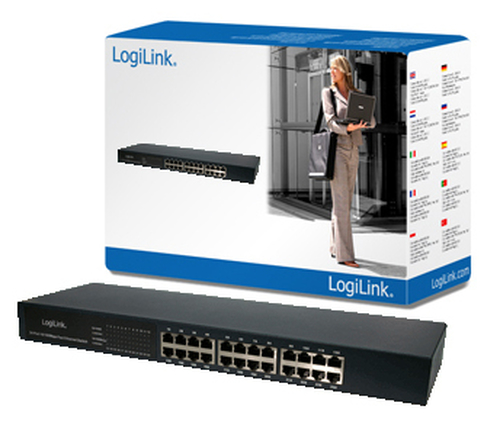

- Nilox 16NX042401001 network switch Unmanaged vsLogiLink Gigabit Switch 24-PortCompare specs
- Nilox 16NX042401001 network switch Unmanaged vsLevelOne 5-Port Fast Ethernet PoE Switch, 802.3af PoE, 4 PoE OutputsCompare specs

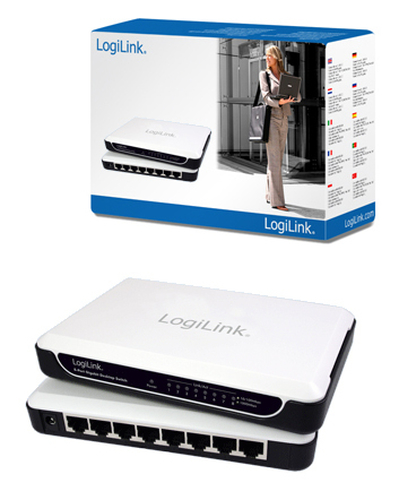

- Nilox 16NX042401001 network switch Unmanaged vsLogiLink Gigabit Desktop SwitchCompare specs

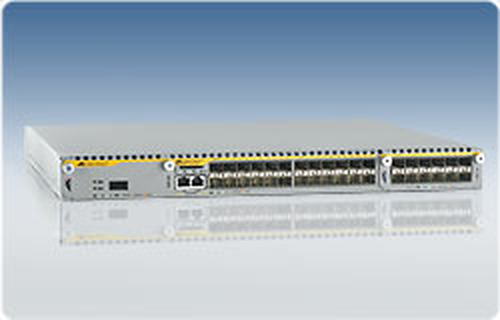

- Nilox 16NX042401001 network switch Unmanaged vsAllied Telesis AT-X900-24XS-P-60 Managed L3+Compare specs
