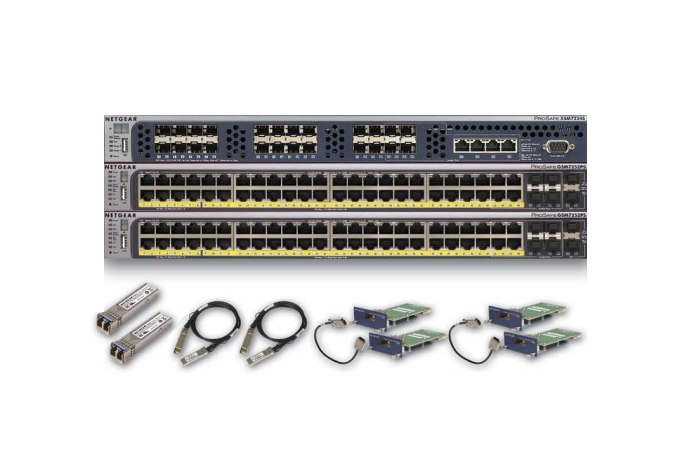

NETGEAR XSM96PSKT-100NAS network switch Managed L2+ Silver
Model XSM96PSKT-100NASEAN 606449082913
79 specifications
- ProcessorCavium CN5230-750
- Memory512 MB
- Speed10 Gbit/s
- ConnectivityWired
- Noise44 dB
- Weight6.3 kg
Overview
- Processor
- Cavium CN5230-750
- Memory
- 512 MB
- Speed
- 10 Gbit/s
- Connectivity
- Wired
- Noise
- 44 dB
- Weight
- 6.3 kg
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- XSM96PSKT-100NAS
- Part number
- XSM96PSKT-100NAS
- EAN / UPC
- 606449082913, 6064490829132
- Also known as
- NETGEAR XSM96PSKT-100NAS network switch Managed L2+ Silver
Specifications
79 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | MIB-II, Bridge-MIB, Eth-MIB, VLAN-MIB, SMON-MIB, Client-MIB, Entity-MIB, LLDP-MIB, LLDP-MED-MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 96 |
| Fiber optic connector | SFP |
| Console port | RS-232 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T, 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| IP address table | 128 |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 1024 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Supported data transfer rates | 1000 Mbps |
| Switching capacity | 480 Gbit/s |
| Throughput | 357 Mpps |
| Store-and-forward | Yes |
| Number of trunks | 64 |
| Number of queues | 8 |
| Number of static routes | 64 |
| Maximum data transfer rate | 10 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 8 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS, WPA-AES |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMPv1, v2, v3, SNMPv1, v2, v3 |
| Data link protocols | LLPF |
| Supported network protocols | IPv4/IPv6, TCP/UDP, MAC, IP, TCP, TFTP, ICMP, ISDP, ARP, SCP, BOOTP, SMIv1, SNTPv4, BSD, Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Silver |
| LED indicators | LAN, Link, Power, Yes |
| Safety | CE, CSA, UL/cUL |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Cavium CN5230-750 |
| Processor frequency | 750 MHz |
| Memory type | DDR2-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 44 dB |
| Mean time between failures (MTBF) | 180178 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 195.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 1.59/4.1μs |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 122 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 431 mm |
| Height | 43 mm |
| Weight | 6.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, RS-232 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI, EN, C-Tick |
