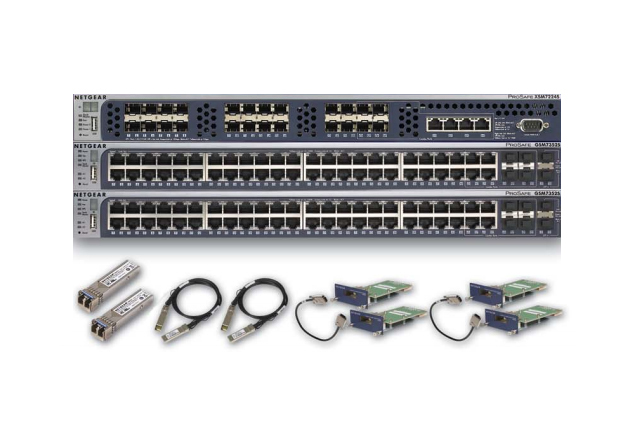

NETGEAR XSM96GSKT-100NAS network switch Managed L3 Silver
Model XSM96GSKT-100NASEAN 606449082883
80 specifications
- ProcessorCavium CN5230-750
- Memory512 MB
- Speed10 Gbit/s
- ConnectivityWired
- Noise44 dB
- Weight6.3 kg
Overview
- Processor
- Cavium CN5230-750
- Memory
- 512 MB
- Speed
- 10 Gbit/s
- Connectivity
- Wired
- Noise
- 44 dB
- Weight
- 6.3 kg
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- XSM96GSKT-100NAS
- Part number
- XSM96GSKT-100NAS
- EAN / UPC
- 606449082883
- Also known as
- NETGEAR XSM96GSKT-100NAS network switch Managed L3 Silver
Specifications
80 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | MIB-II, Bridge-MIB, Eth-MIB, VLAN-MIB, SMON-MIB, Client-MIB, Entity-MIB, LLDP-MIB, LLDP-MED-MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 96 |
| Fiber optic connector | SFP |
| Console port | RS-232 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T, 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| IP address table | 128 |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 1024 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Supported data transfer rates | 1000 Mbps |
| Switching capacity | 480 Gbit/s |
| Throughput | 357 Mpps |
| Store-and-forward | Yes |
| Number of trunks | 64 |
| Number of queues | 8 |
| Number of static routes | 64 |
| Maximum data transfer rate | 10 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 8 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS, WPA-AES |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMPv1, v2, v3, SNMPv1, v2, v3 |
| Data link protocols | LLPF |
| Supported network protocols | IPv4/IPv6, TCP/UDP, MAC, IP, TCP, TFTP, ICMP, ISDP, ARP, SCP, BOOTP, SMIv1, SNTPv4, BSD, Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Silver |
| LED indicators | LAN, Link, Power, Yes |
| Safety | CE, CSA, UL/cUL |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Cavium CN5230-750 |
| Processor frequency | 750 MHz |
| Memory type | DDR2-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 44 dB |
| Mean time between failures (MTBF) | 180178 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 195.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 1.59/4.1μs |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 122 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 431 mm |
| Height | 43 mm |
| Weight | 6.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, RS-232 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI, EN, C-Tick |
