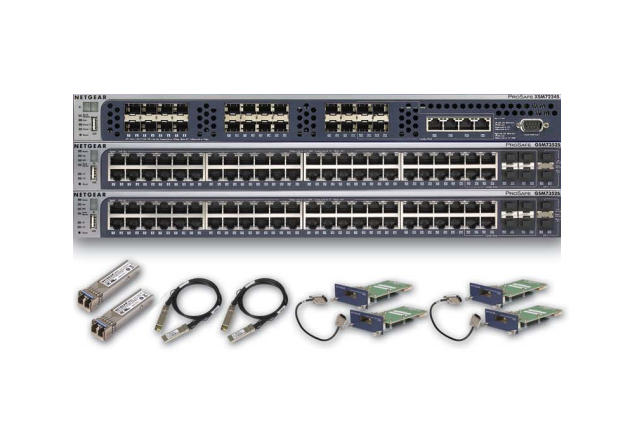

NETGEAR XSM96GSKT Managed L2+ 1U Silver

Model XSM96GSKTPart no. XSM96GSKT-100EUSEAN 606449082906

83 specifications

ProcessorCavium CN5230-750
Memory512 MB
Speed10 Gbit/s
ConnectivityWired
Noise44 dB
Type1U

See all specifications

Overview

Processor: Cavium CN5230-750
Memory: 512 MB
Speed: 10 Gbit/s
Connectivity: Wired
Noise: 44 dB
Type: 1U

Brand: NETGEAR
Category: Network Switch
Model: XSM96GSKT
Part number: XSM96GSKT-100EUS
EAN / UPC: 606449082906
Also known as: NETGEAR XSM96GSKT Managed L2+ 1U Silver

Specifications

83 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
MIB support	MIB-II, Bridge-MIB, Eth-MIB, VLAN-MIB, SMON-MIB, Client-MIB, Entity-MIB, LLDP-MIB, LLDP-MED-MIB

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	4
SFP module slots quantity	24
SFP/SFP+ slots quantity	24
Fiber optic connector	SFP
Console port	RS-232
USB 2.0 ports quantity	1

Network

Specification	Value
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Broadcast storm control	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
IP address table	128
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	1024

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE‑LX, 1000BASE‑SX

Data transmission

Specification	Value
MAC address table	32000 entries
Supported data transfer rates	10/100/1000 Mbps
Switching capacity	480 Gbit/s
Throughput	357 Mpps
Store-and-forward	Yes
Number of trunks	64
Number of queues	8
Number of static routes	64
Maximum data transfer rate	10 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	8 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS, WPA-AES
Static port security	Yes

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	IGMPv1, v2, v3, SNMPv1, v2, v3
Data link protocols	LLPF
Supported network protocols	IPv4/IPv6, TCP/UDP, MAC, IP, TCP, TFTP, ICMP, ISDP, ARP, SCP, BOOTP, SMIv1, SNTPv4, BSD, Telnet

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Silver
LED indicators	LAN, Link, Power, Yes
Safety	CE, CSA, UL/cUL

Performance

Specification	Value
Built-in processor	Yes
Processor model	Cavium CN5230-750
Processor frequency	750 MHz
Memory type	DDR2-SDRAM
Internal memory	512 MB
Flash memory	128 MB
Noise level	44 dB
Mean time between failures (MTBF)	180178 h

Power

Specification	Value
Input voltage	100 - 240 V
Power consumption (typical)	195.2 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Other features

Specification	Value
Latency	1.59/4.1μs
Dimensions (WxDxH)	440 x 431 x 43 mm
Connectivity technology	Wired
Cabling technology	10/100/1000 Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Input frequency	50/60 Hz
Networking features	Gigabit Ethernet
Power LED	Yes
Wi-Fi	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating altitude	0 - 3000 m
Operating temperature (T-T)	32 - 122 °F

Weight & dimensions

Specification	Value
Weight	6.3 kg

Packaging content

Specification	Value
Cables included	AC, RS-232

Certificates

Specification	Value
Certification	CE, FCC, VCCI, EN, C-Tick
