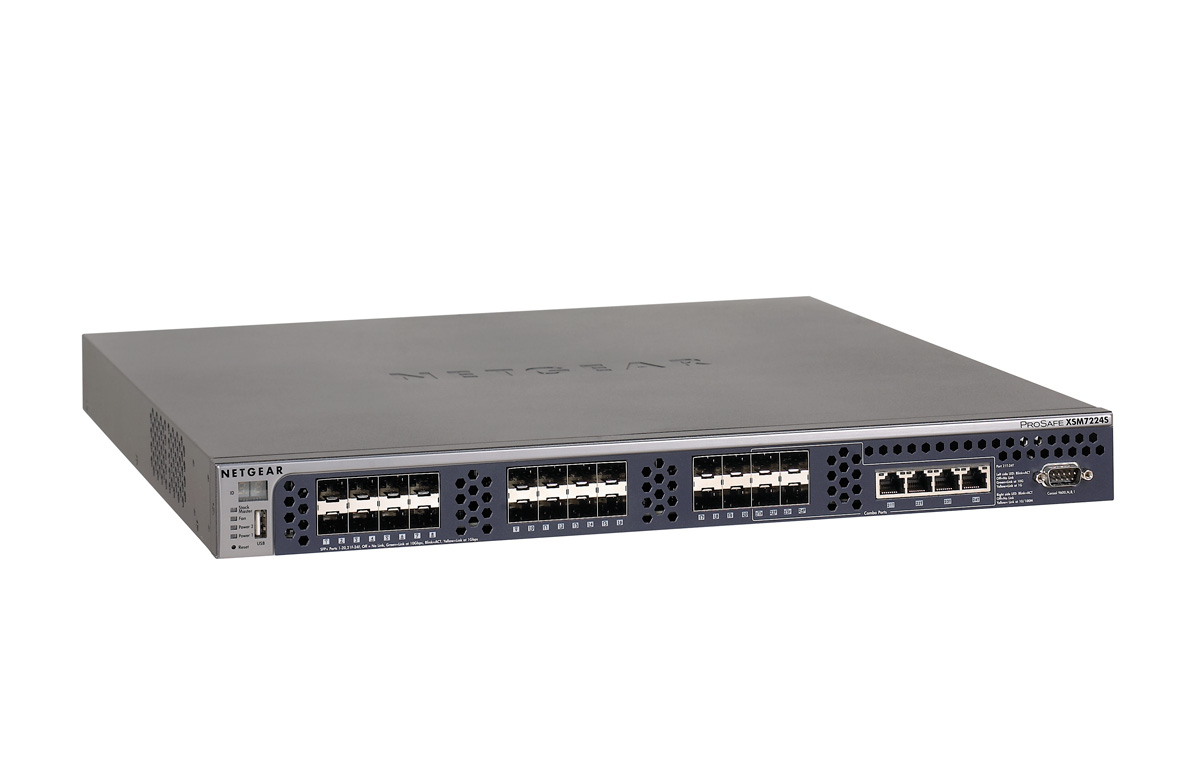

NETGEAR XSM7224S-100EUS network switch Managed L2+ Silver
Model XSM7224S-100EUSEAN 5054533175488
74 specifications
- ProcessorCavium CN5230-750
- Memory512 MB
- Speed10 Gbit/s
- ConnectivityWired
- Noise44 dB
- Weight6.3 kg
Overview
- Processor
- Cavium CN5230-750
- Memory
- 512 MB
- Speed
- 10 Gbit/s
- Connectivity
- Wired
- Noise
- 44 dB
- Weight
- 6.3 kg
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- XSM7224S-100EUS
- Part number
- XSM7224S-100EUS
- EAN / UPC
- 5054533175488, 606449073690, 5052883675306, 5054629125694 +1 more
- Also known as
- NETGEAR XSM7224S-100EUS network switch Managed L2+ Silver
Specifications
74 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Console port | RS-232 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 1024 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Supported data transfer rates | 100/1000/10000Mbps |
| Throughput | 357 Mpps |
| Store-and-forward | Yes |
| Number of trunks | 64 |
| Maximum data transfer rate | 10 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 16 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, LLDP, LLDP-ME, TFTP, SFTP, HTTP, SCP |
| Supported network protocols | TFTP, SFTP, HTTP, SCP, IPv4/IPv6, TCP/UDP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Silver |
| LED indicators | Fan fail, LAN |
| Number of fans | 4 fan(s) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Cavium CN5230-750 |
| Processor frequency | 750 MHz |
| Memory type | DDR2-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 44 dB |
| Mean time between failures (MTBF) | 180178 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 195.2 W |
Other features
| Specification | Value |
|---|---|
| Management platform | CLI/GUI |
| Latency | 4.1μs/1.59μs |
| Dimensions (WxDxH) | 440 x 441 x 43 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
| Dimensions (W x D x H) (imperial) | 439.4 x 431.8 x 43.2 mm (17.3 x 17 x 1.7") |
| Weight (imperial) | 6.3 kg (13.9 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 122 °F |
| Heat dissipation | 666.42 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Serial |
Certificates
| Specification | Value |
|---|---|
| Certification | CE CSA FCC VCCI UL |
