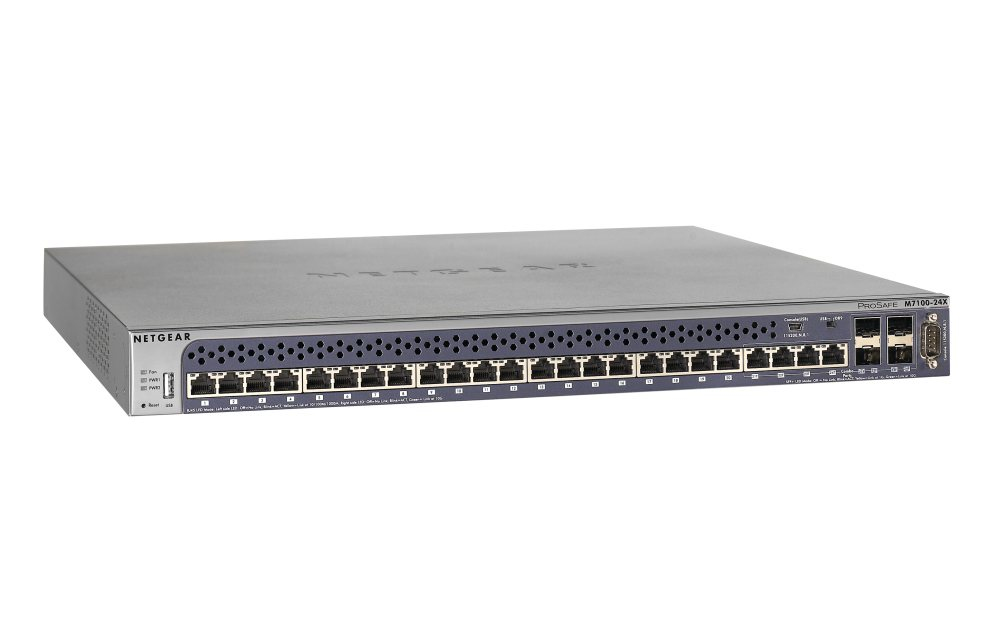

NETGEAR XSM7224 Managed L2+ Grey
Model XSM7224Part no. XSM7224-100NESEAN 8656112386758
69 specifications
- ProcessorCavium CN5230-750
- Memory512 MB
- Speed10 Gbit/s
- Weight6.3 kg
- ColourGrey
- Switch typeManaged
Overview
- Processor
- Cavium CN5230-750
- Memory
- 512 MB
- Speed
- 10 Gbit/s
- Weight
- 6.3 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- XSM7224
- Part number
- XSM7224-100NES
- EAN / UPC
- 8656112386758, 132017867977, 151903631485, 163120913558 +5 more
- Also known as
- NETGEAR XSM7224 Managed L2+ Grey
Specifications
69 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| SFP/SFP+ slots quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RS-232 |
| USB 2.0 ports quantity | 1 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 1024 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 480 Gbit/s |
| Store-and-forward | Yes |
| Number of static routes | 64 |
| Maximum data transfer rate | 10 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, LLDP, LLDP-MED, TFTP, SFTP, HTTP, SCP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Cable management | Yes |
| Safety | CE, CSA, UL |
| Electromagnetic compatibility | CE, FCC, EN 55022, C-Tick, EN 50082-1, EN 55024 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Cavium CN5230-750 |
| Processor frequency | 750 MHz |
| Memory type | DDR2-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 180178 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 195.2 W |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Non-operating altitude | 0 - 10000 m |
| Operating temperature (T-T) | 32 - 122 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 431 mm |
| Height | 43 mm |
| Weight | 6.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, RS-232 |
What people say
Reviews & ratings
NETGEAR XSM7224 Managed L2+ Grey
No reviews yet
Be the first to tell others how NETGEAR XSM7224 Managed L2+ Grey works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NETGEAR XSM7224 Managed L2+ Grey
All network switch comparisons- NETGEAR XSM7224 Managed L2+ Grey vsNETGEAR M4100-D10-POE L2+ Power over Ethernet (PoE) BlackCompare specs
- NETGEAR XSM7224 Managed L2+ Grey vsNETGEAR M4100-50-POE Managed L2+ Power over Ethernet (PoE) BlackCompare specs

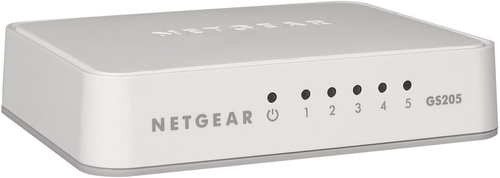

- NETGEAR XSM7224 Managed L2+ Grey vsNETGEAR GS205 Unmanaged Gigabit Ethernet (10/100/1000) WhiteCompare specs

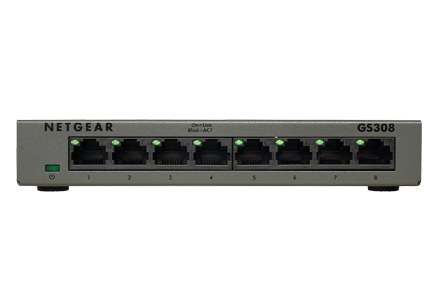

- NETGEAR XSM7224 Managed L2+ Grey vsNETGEAR GS308 Unmanaged Gigabit Ethernet (10/100/1000) GreyCompare specs
