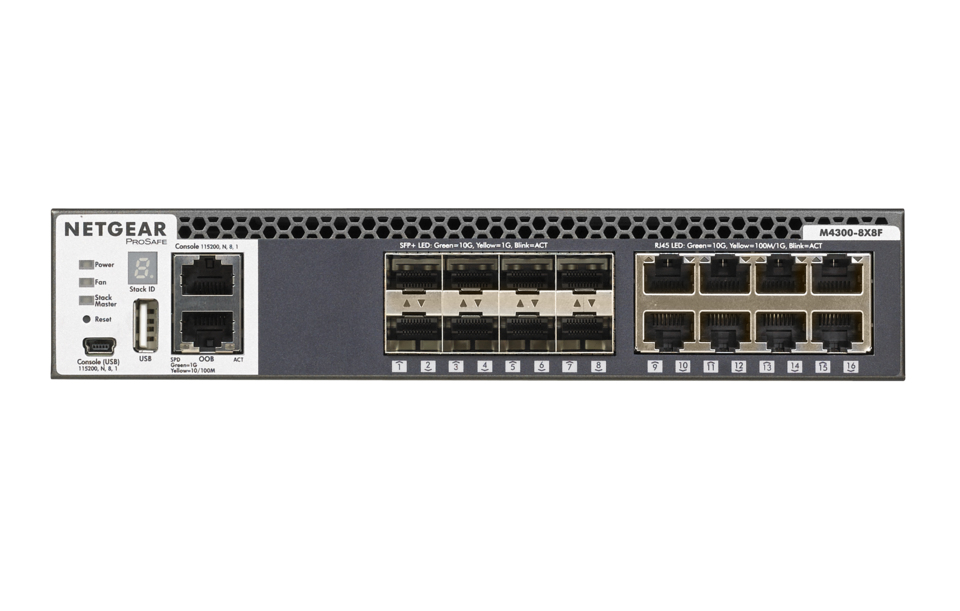

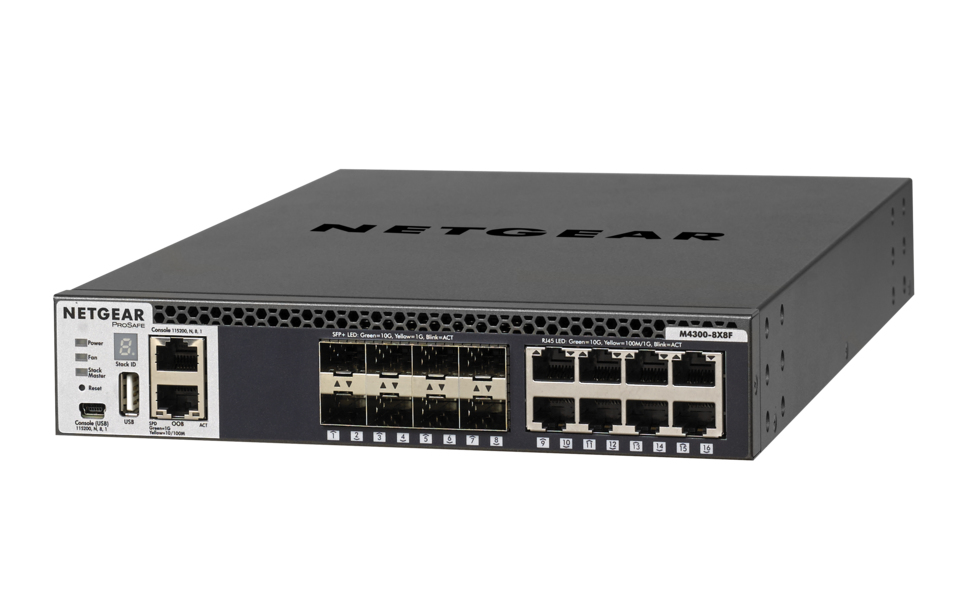

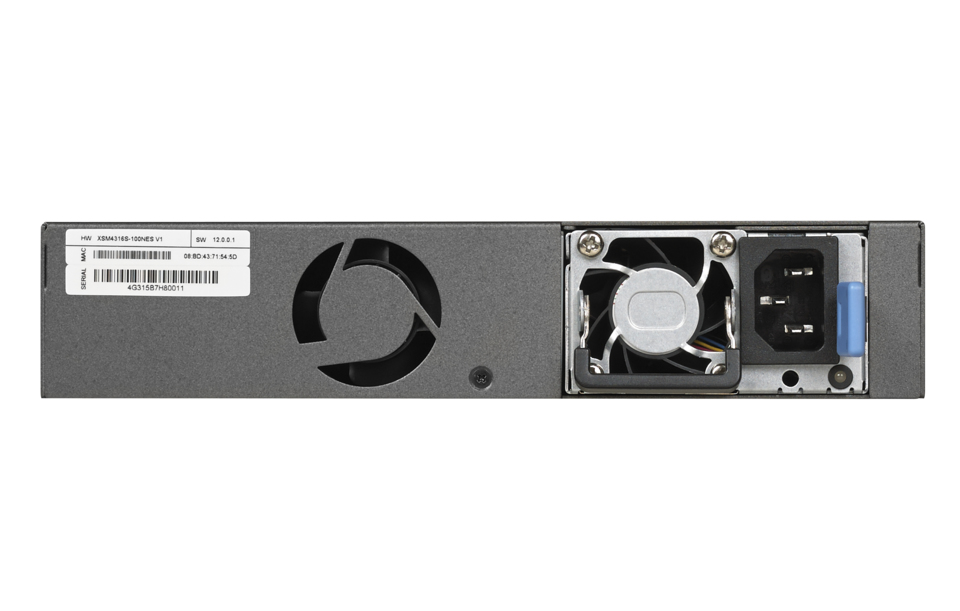

NETGEAR XSM4316S Managed L3
10G Ethernet (100/1000/10000) 1U Black
Model XSM4316SPart no. XSM4316S-100NESEAN 606449110005
76 specifications
- Memory1024 MB
- Noise36.9 dB
- Type1U
- Weight3.32 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 1024 MB
- Noise
- 36.9 dB
- Type
- 1U
- Weight
- 3.32 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- XSM4316S
- Part number
- XSM4316S-100NES
- EAN / UPC
- 606449110005
- Also known as
- NETGEAR XSM4316S Managed L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
76 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| SFP+ module slots quantity | 8 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11ad, IEEE 802.11az, IEEE 802.3ad, IEEE 802.3az |
| 10G support | Yes |
| Cable types supported | Cat5, Cat5e, Cat6, Cat7 |
| Port mirroring | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-LRM, 10GBASE-SR |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Forwarding rate | 357 Mpps |
| Store-and-forward | Yes |
| Number of static routes | 64 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SNMP, SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 4000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Power, Speed |
| Safety | CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950 |
| Electromagnetic compatibility | CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Noise level | 36.9 dB |
| Mean time between failures (MTBF) | 196120 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 120 - 230 V |
| Power consumption (max) | 49 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 18577 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 212 mm |
| Depth | 345 mm |
| Height | 44 mm |
| Weight | 3.32 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45), Mini-USB |
| Rack mount kit | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Resource CD | Yes |
| Rubber feet | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare NETGEAR XSM4316S Managed L3

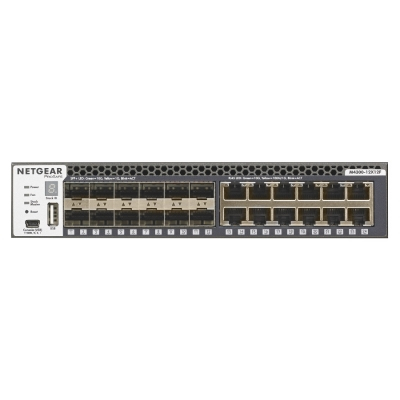

Compare any products- NETGEAR XSM4316S Managed L3 vsNETGEAR M4300-12X12F Managed L2/L3Compare specs
- NETGEAR XSM4316S Managed L3 vsNETGEAR GSM4352PB Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs

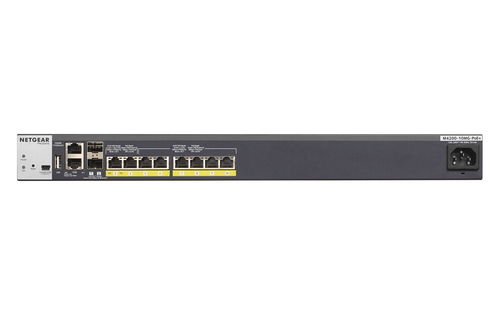

- NETGEAR XSM4316S Managed L3 vsNETGEAR M4200-10MG-PoE+ Managed L2/L3Compare specs

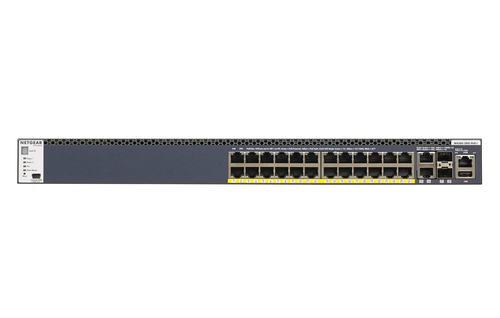

- NETGEAR XSM4316S Managed L3 vsNETGEAR GSM4328PA Managed L2/L3/L4Compare specs

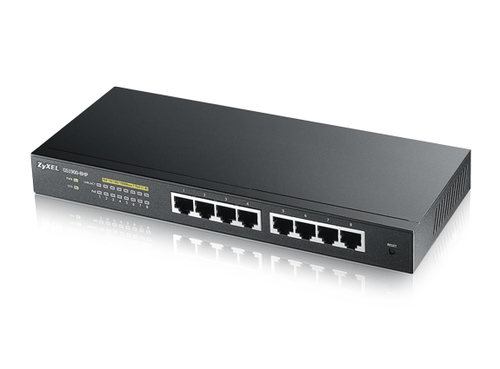

- NETGEAR XSM4316S Managed L3 vsZyxel GS1900-8HP v2Compare specs

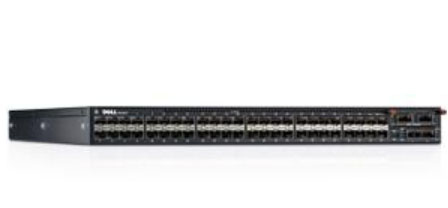

- NETGEAR XSM4316S Managed L3 vsDell N4064F + 5YNBDCompare specs
- NETGEAR XSM4316S Managed L3 vsAllied Telesis AT-IE200-6FP-80 Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black, GreyCompare specs

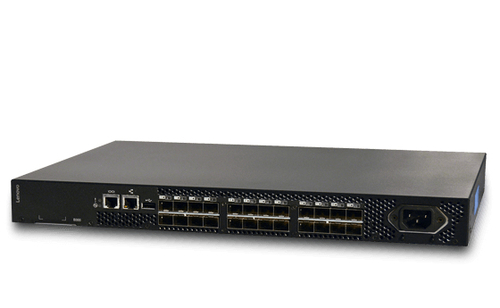

- NETGEAR XSM4316S Managed L3 vsLenovo B300 ManagedCompare specs
