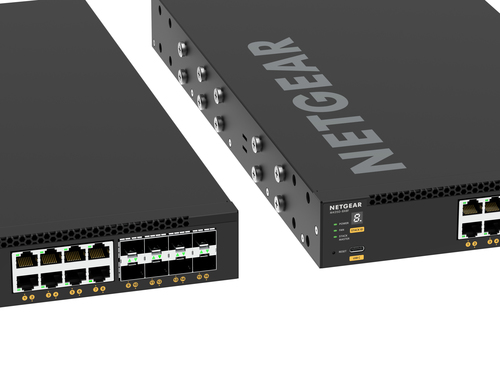

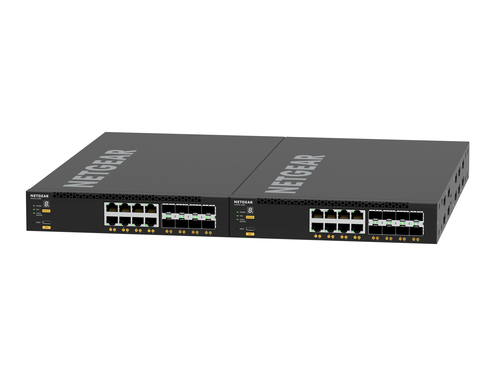

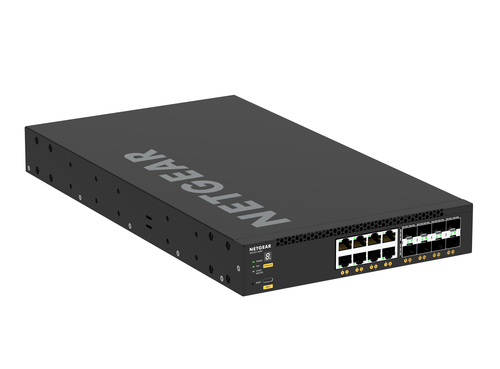

XSM4316 Managed L3
10G Ethernet (100/1000/10000) 1U Black
Model XSM4316Part no. XSM4316-100NESEAN 606449161472
91 specifications
- ProcessorARM Cortex-A57
- Memory2048 MB
- Type1U
- Weight4.05 kg
- ColourBlack
- Switch typeManaged
Overview
- Processor
- ARM Cortex-A57
- Memory
- 2048 MB
- Type
- 1U
- Weight
- 4.05 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- XSM4316
- Part number
- XSM4316-100NES
- EAN / UPC
- 606449161472
- Also known as
- NETGEAR XSM4316 Managed L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
91 specifications in 18 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 8 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
| 10G support | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| 6to4 tunnel | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Voice VLAN |
| Number of VLANs | 4093 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Throughput | 238.08 Mpps |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 2.39 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) egress | 1023 |
| Access Control List (ACL) ingress | 511 |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Authentication type | RADIUS, TACACS+ |
| BPDU filtering/protection | Yes |
| DoS attack prevention | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted random early detection (WRED) |
| Root protection | Yes |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP V1, V2, V3 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Airflow direction | Front-to-back airflow |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM Cortex-A57 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
| sFlow | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Power consumption (typical) | 81.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Power supply | 240 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 400 mm |
| Height | 43.2 mm |
| Weight | 4.05 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB Type-C |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Included power plug types | EU, UK, NA |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
