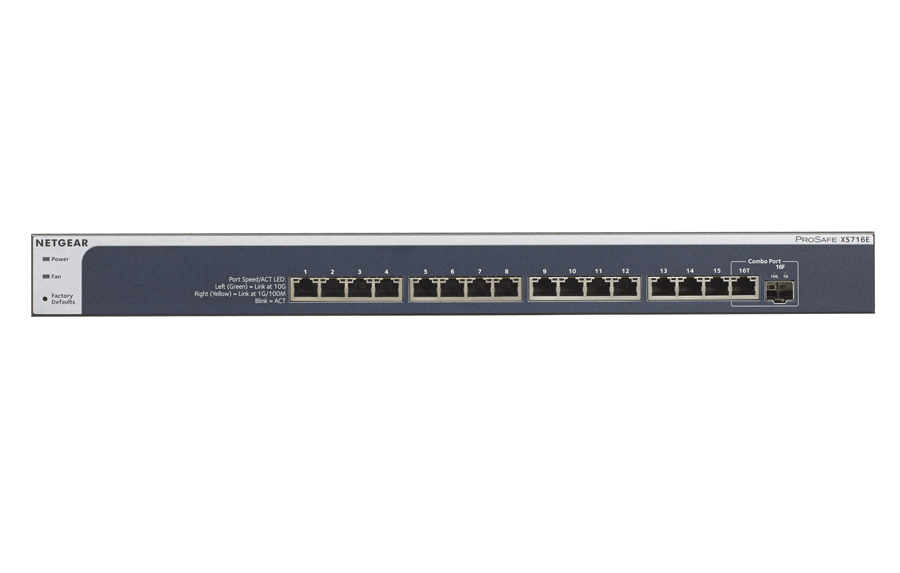

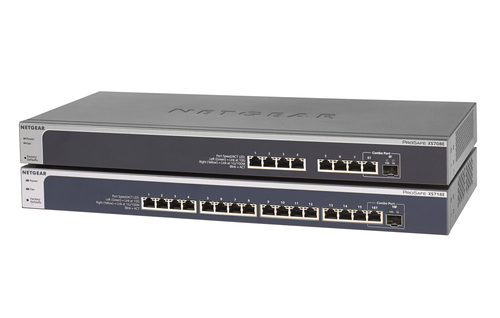

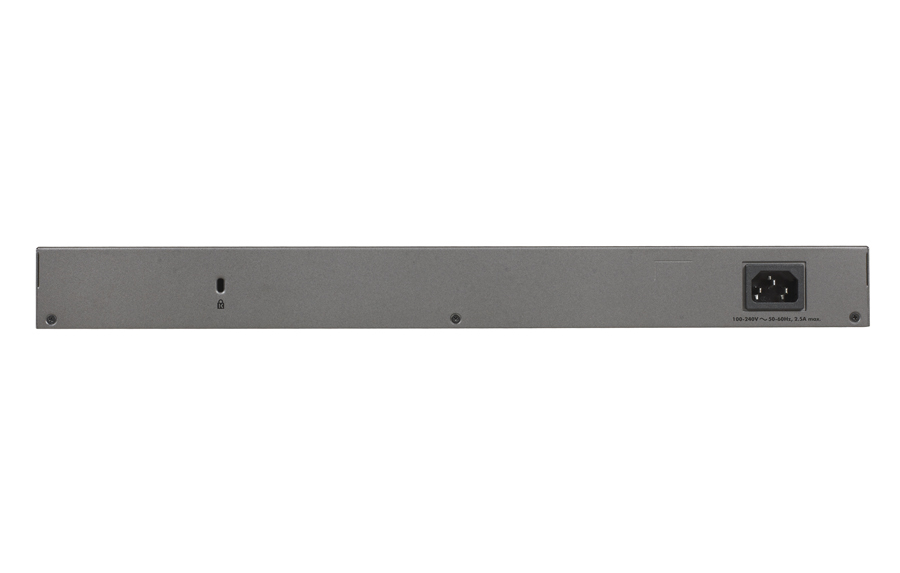

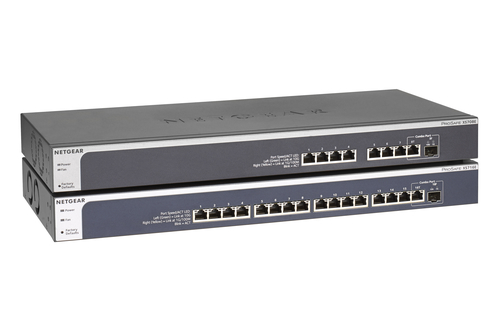

NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E)
Model XS716EPart no. XS716E-100NESEAN 606449115246
61 specifications
- Noise33.9 dB
- Type1U
- Weight3.2 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
Overview
- Noise
- 33.9 dB
- Type
- 1U
- Weight
- 3.2 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- XS716E
- Part numbers
- XS716E-100NES, XS716E-100AJS
- EAN / UPC
- 606449115246, 606449115239
- Also known as
- NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E)
Specifications
61 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 1 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 128 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Throughput | 238.1 Mpps |
| Latency (10-100 Mbps) | 7.14 µs |
| Latency (1 Gbps) | 2.68 µs |
| Latency (10 Gbps) | 3.43 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 128 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Safety | UL/cUL UL 60950-1/CAN/CSA C22.2 No. 60960-1-07, EN 60950-1: 2006, A11:2009, A1:2010, A12:2011, A2:2013, IEC 60950-1:2005, A1:2009, A2:2013, AN/NZS 60950.1:2011/Amdt 1: 2012 |
Performance
| Specification | Value |
|---|---|
| Noise level | 33.9 dB |
| Mean time between failures (MTBF) | 348257 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Power consumption (typical) | 20.9 W |
| Power consumption (max) | 62.7 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 21440 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 204 mm |
| Height | 43 mm |
| Weight | 3.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, 47 CFR FCC, SubpartB, ANSI C63.4: 2014, EN 55022:2010 + AC:2011, EN 55024:2010, AS/NZS CISPR 22:2009 + A1:2010, V-3/2015.04, V-4/2012.04, ICES-003:2012 Issue 5, EAC, KC, CCC, CNS 13438, CNS 13438 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E)
No reviews yet
Be the first to tell others how NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E)
All network switch comparisons- NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E) vsNETGEAR XSM4324CS Managed L3Compare specs
- NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E) vsNETGEAR GSS108EPP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs
- NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E) vsNETGEAR M4300-52G Managed L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
- NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E) vsNETGEAR GSM4352PB Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs

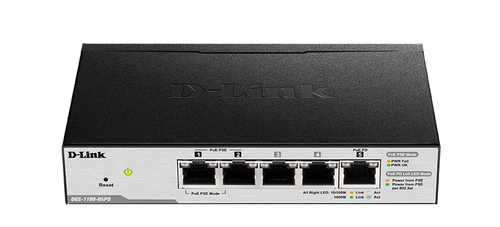

- NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E) vsD-Link DGS-1100-05PD network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs

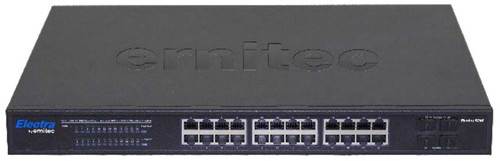

- NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E) vsErnitec ELECTRA-S-24F Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs
