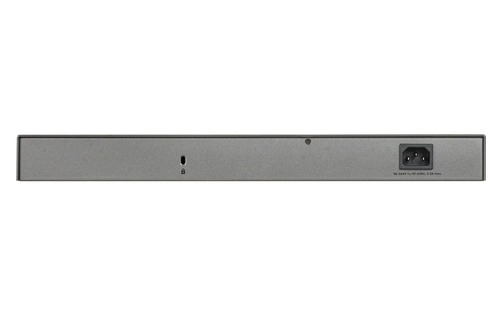

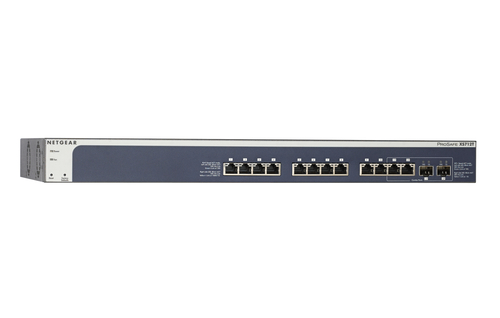

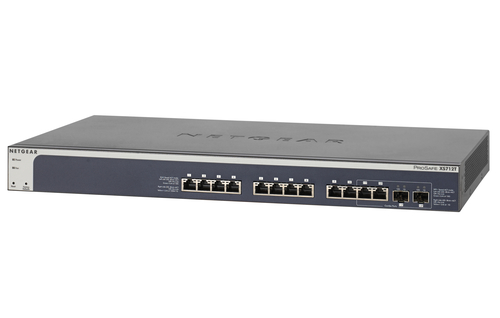

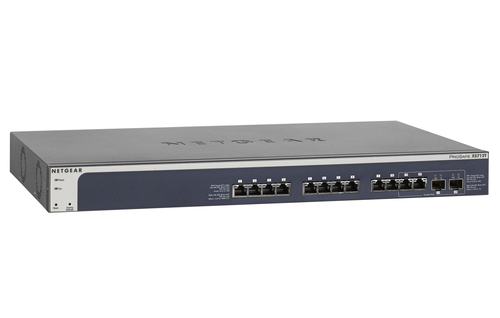

NETGEAR XS712T Managed L3 Blue
Model XS712TPart no. XS712T-200AJSEAN 606449129328
49 specifications
- Memory2 MB
- Noise49.7 dB
- Weight4 kg
- ColourBlue
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
Overview
- Memory
- 2 MB
- Noise
- 49.7 dB
- Weight
- 4 kg
- Colour
- Blue
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- XS712T
- Part numbers
- XS712T-200AJS, XS712T-100NES, XS712T-200NES
- EAN / UPC
- 606449129328, 102930796883, 132017891040, 606449090574 +7 more
- Also known as
- NETGEAR XS712T Managed L3 Blue
Specifications
49 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 240 Gbit/s |
| Store-and-forward | Yes |
| Latency (10 Gbps) | 6.606 µs |
| Number of static routes | 32 |
| Number of IP interfaces | 15 |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 1000 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IPv6, SNTP, SNMP v1/v2, SNMP v3, RMON 1/2/3/9, SSL/HTTPS, TFTP/HTTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Blue |
| LED indicators | Yes |
| Safety | CB, CSA, UL, CCC |
Performance
| Specification | Value |
|---|---|
| Internal memory | 2 MB |
| Noise level | 49.7 dB |
| Mean time between failures (MTBF) | 211197 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 98.2 W |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 257 mm |
| Height | 43 mm |
| Weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | - CE mark, commercial - FCC Part 15 Class A, VCCI Class A - Class A EN 55022 (CISPR 22) Class A - C-Tick Class-A - EN 50082-1 - EN 55024 |
What people say
Reviews & ratings
NETGEAR XS712T Managed L3 Blue
No reviews yet
Be the first to tell others how NETGEAR XS712T Managed L3 Blue works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NETGEAR XS712T Managed L3 Blue

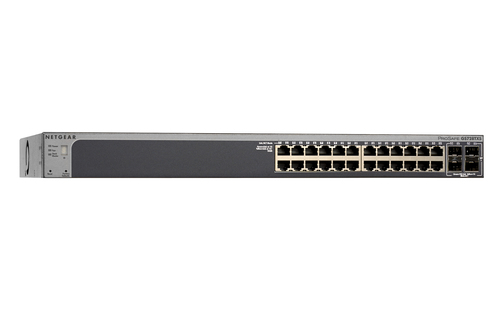

All network switch comparisons- NETGEAR XS712T Managed L3 Blue vsNETGEAR GS728TXS Gigabit Ethernet (10/100/1000) GreyCompare specs

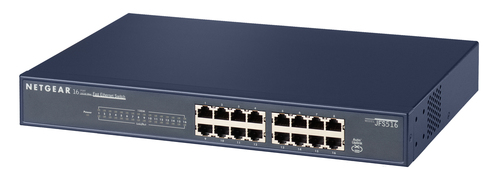

- NETGEAR XS712T Managed L3 Blue vsNETGEAR JFS516 Unmanaged Fast Ethernet (10/100) GreyCompare specs
- NETGEAR XS712T Managed L3 Blue vsNETGEAR GS728TP Managed L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs
- NETGEAR XS712T Managed L3 Blue vsNETGEAR GS728TPP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs

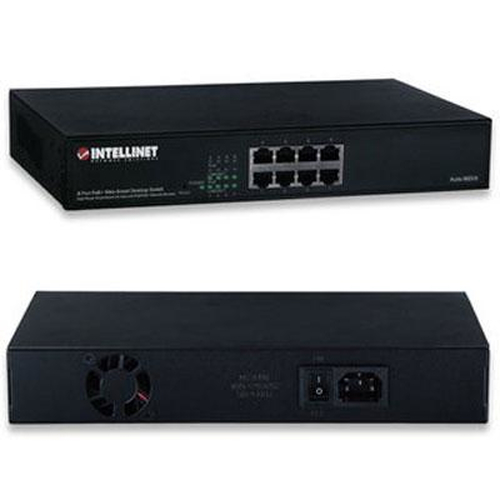

- NETGEAR XS712T Managed L3 Blue vsIntellinet 560757 network switch Power over Ethernet (PoE) BlackCompare specs

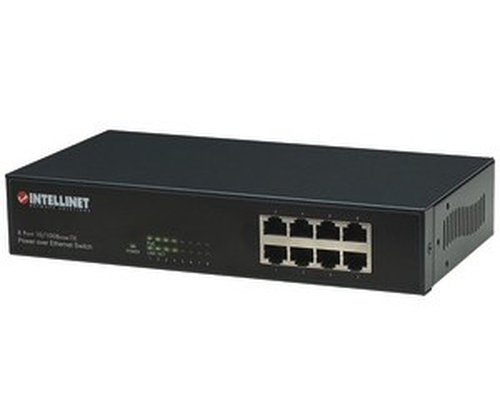

- NETGEAR XS712T Managed L3 Blue vsIntellinet 560665 network switch Power over Ethernet (PoE) BlackCompare specs

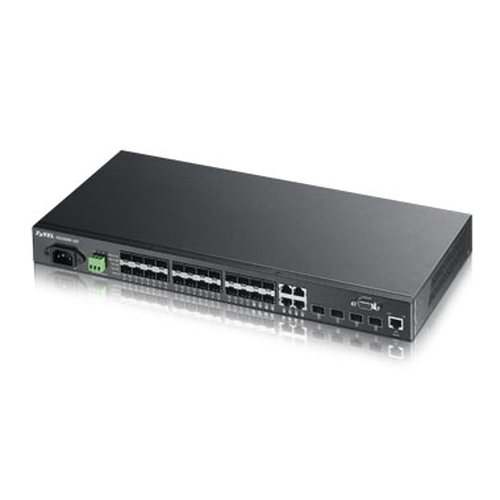

- NETGEAR XS712T Managed L3 Blue vsZyxel MGS3600-24F Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
