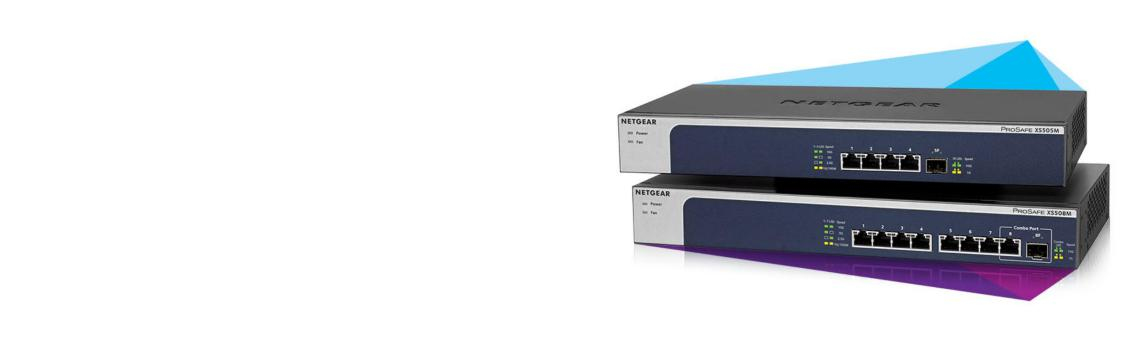

XS505M-100NAS network switch Unmanaged
10G Ethernet (100/1000/10000) Black, Silver
Model XS505M-100NASEAN 606449131147
46 specifications
- Noise28.8 dB
- Weight1.38 kg
- ColourBlack, Silver
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportYes
Overview
- Noise
- 28.8 dB
- Weight
- 1.38 kg
- Colour
- Black, Silver
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- Yes
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- XS505M-100NAS
- Part number
- XS505M-100NAS
- EAN / UPC
- 606449131147
- Also known as
- NETGEAR XS505M-100NAS network switch Unmanaged 10G Ethernet (100/1000/10000) Black, Silver
Specifications
46 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| User operation log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,480,800,1000,1200,2500,3000,5000,6000,10000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 100 Gbit/s |
| Latency (10-100 Mbps) | 6 µs |
| Latency (1 Gbps) | 4 µs |
| Latency (10 Gbps) | 4.845 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.128 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black, Silver |
| LED indicators | Activity, Fan fail, Link, Power, Speed |
| Number of fans | 1 fan(s) |
| Safety | CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI |
Performance
| Specification | Value |
|---|---|
| Noise level | 28.8 dB |
| Mean time between failures (MTBF) | 1093237 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.5 A |
| Power consumption (typical) | 12.25 W |
| Power consumption (max) | 22.5 W |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 85.3 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 328 mm |
| Depth | 43.2 mm |
| Height | 169 mm |
| Weight | 1.38 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | 47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438 |
