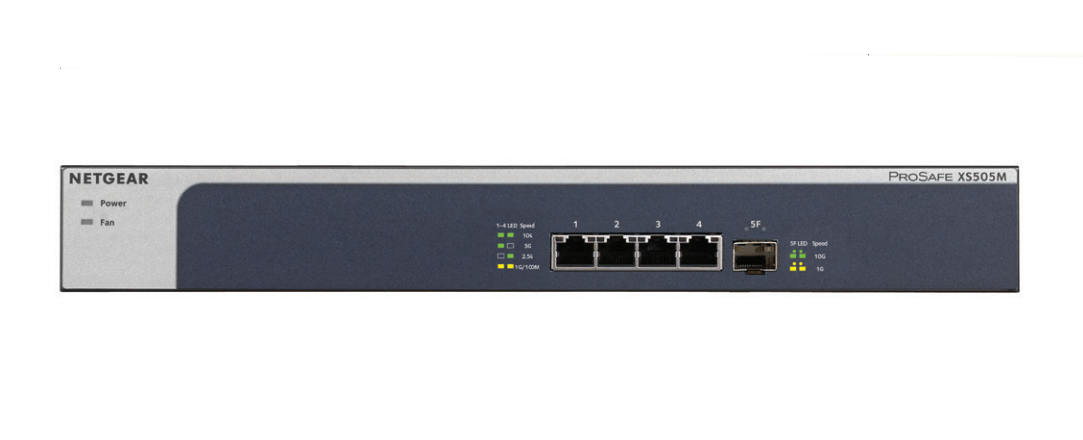

NETGEAR XS505M Unmanaged

NETGEAR XS505M Unmanaged

10G Ethernet (100/1000/10000) Grey, Silver

Model XS505MPart no. XS505M-100EUSEAN 606449131130

40 specifications
  • Weight1.38 kg
  • ColourGrey, Silver
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity4
  • 10G supportYes
  • MAC address table2000 entries
See all specifications

Overview

Weight
1.38 kg
Colour
Grey, Silver
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
4
10G support
Yes
MAC address table
2000 entries
Brand
NETGEAR
Model
XS505M
Part number
XS505M-100EUS
EAN / UPC
606449131130
Also known as
NETGEAR XS505M Unmanaged 10G Ethernet (100/1000/10000) Grey, Silver

Specifications

40 specifications in 12 groups

Management features

Switch typeUnmanaged
Quality of Service (QoS) supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Installed SFP modules quantity0
SFP+ module slots quantity1
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Full duplexYes
Flow control supportYes

Data transmission

MAC address table2000 entries
Switching capacity100 Gbit/s
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory128 MB

Design

Rack mountingYes
Product colourGrey, Silver
LED indicatorsYes
SafetyCE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI

Performance

Mean time between failures (MTBF)1093237 h

Power

Power sourceAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1.5 A
Power consumption (typical)12.25 W
Power consumption (max)22.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Heat dissipation85.3 BTU/h

Weight & dimensions

Width328 mm
Depth169 mm
Height43.2 mm
Weight1.38 kg

Certificates

Certification47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438

Logistics data

Harmonized System (HS) code85176990
