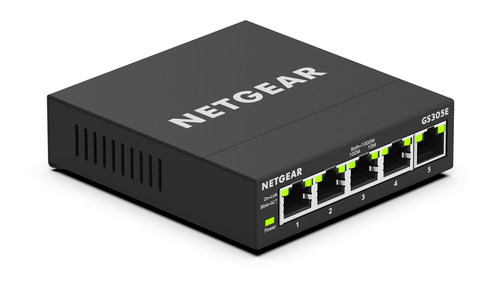

SOHO Managed L3 Gigabit Ethernet (10/100/1000) Black
Model SOHOPart no. GS305E-100UKSEAN 606449140156
43 specifications
- Weight250 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportYes
- MAC address table8000 entries
Overview
- Weight
- 250 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- Yes
- MAC address table
- 8000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- SOHO
- Part numbers
- GS305E-100UKS, GS305-300UKS, GS308-300UKS
- EAN / UPC
- 606449140156, 606449140576, 606449140101
- Also known as
- NETGEAR SOHO Managed L3 Gigabit Ethernet (10/100/1000) Black
Specifications
43 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 64 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.128 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Priority queuing (PQ), Weighted Round Robin (WRR) |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 128 entries |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Speed, System |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 2531294 h |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 94 mm |
| Height | 27 mm |
| Weight | 250 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE mark, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
