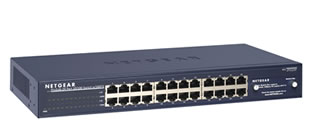

NETGEAR ProSafe™ 24 Port 10/100 Rackmount Switch with 100FX Slot
Model ProSafe™ 24 Port 10/100 Rackmount Switch with 100FX SlotPart no. JFS524FGEEAN 606449040814
15 specifications
- Speed0.1 Gbit/s
- Weight1.6 kg
- Basic switching RJ-45 Ethernet ports quantity24
- Copper ethernet cabling technology100BASE-TX, 10BASE-T
- Data link protocolsEthernet, Fast Ethernet
- SafetyUL listed (UL 1950)/CUL
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 1.6 kg
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Copper ethernet cabling technology
- 100BASE-TX, 10BASE-T
- Data link protocols
- Ethernet, Fast Ethernet
- Safety
- UL listed (UL 1950)/CUL
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- ProSafe™ 24 Port 10/100 Rackmount Switch with 100FX Slot
- Part numbers
- JFS524FGE, JFS524FUK
- EAN / UPC
- 606449040814
- Also known as
- NETGEAR ProSafe™ 24 Port 10/100 Rackmount Switch with 100FX Slot
Specifications
15 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.256 MB |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
Design
| Specification | Value |
|---|---|
| Safety | UL listed (UL 1950)/CUL |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10.5 W |
Other features
| Specification | Value |
|---|---|
| Latency | 10 µsec |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 330 x 169 x 43 mm |
| Power requirements | 100 - 240V, 50/60 Hz |
| Electromagnetic emissions | CE mark, commercial; FCC Part 15 Class A; EN 55 022 (CISPR 22), Class A; VCCI Class A; C-Tick; MIC |
| I/O ports | -SC on AF711F module 100FX |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.6 kg |
