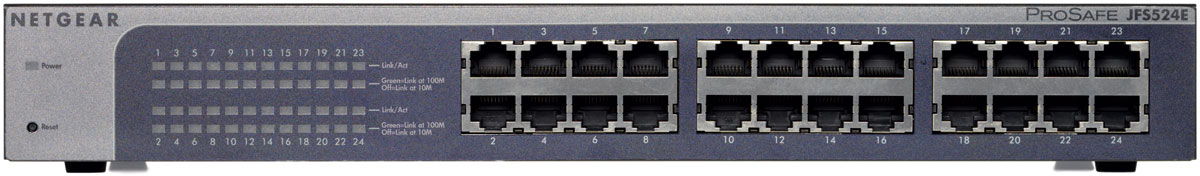

NETGEAR ProSafe Plus 24-Port Fast Ethernet Switch
Model ProSafe Plus 24-Port Fast Ethernet SwitchPart no. JFS524E-100EUSEAN 5052217116420
27 specifications
- Speed0.2 Gbit/s
- ConnectivityWired
- Noise0 dB
- Weight1.43 kg
- ColourBlue
- Switch typeUnmanaged
Overview
- Speed
- 0.2 Gbit/s
- Connectivity
- Wired
- Noise
- 0 dB
- Weight
- 1.43 kg
- Colour
- Blue
- Switch type
- Unmanaged
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- ProSafe Plus 24-Port Fast Ethernet Switch
- Part numbers
- JFS524E-100EUS, JFS524E-100AJS, JFS524E-100UKS, JFS524E
- EAN / UPC
- 5052217116420, 606449066357
- Also known as
- NETGEAR ProSafe Plus 24-Port Fast Ethernet Switch Unmanaged Blue
Specifications
27 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Switching capacity | 4.8 Gbit/s |
| Maximum data transfer rate | 0.2 Gbit/s |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Blue |
| Safety | UL 1950/CUL, CB, CCC |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows XP / Vista |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 1952478 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 330 x 173 x 43 mm |
| Connectivity technology | Wired |
| Power requirements | 100-240V, 50-60Hz, 1.2A |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | CE mark, FCC 15 A, EN 55022 (CISPR 22) A, VCCI A, C-Tick, KCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.43 kg |
