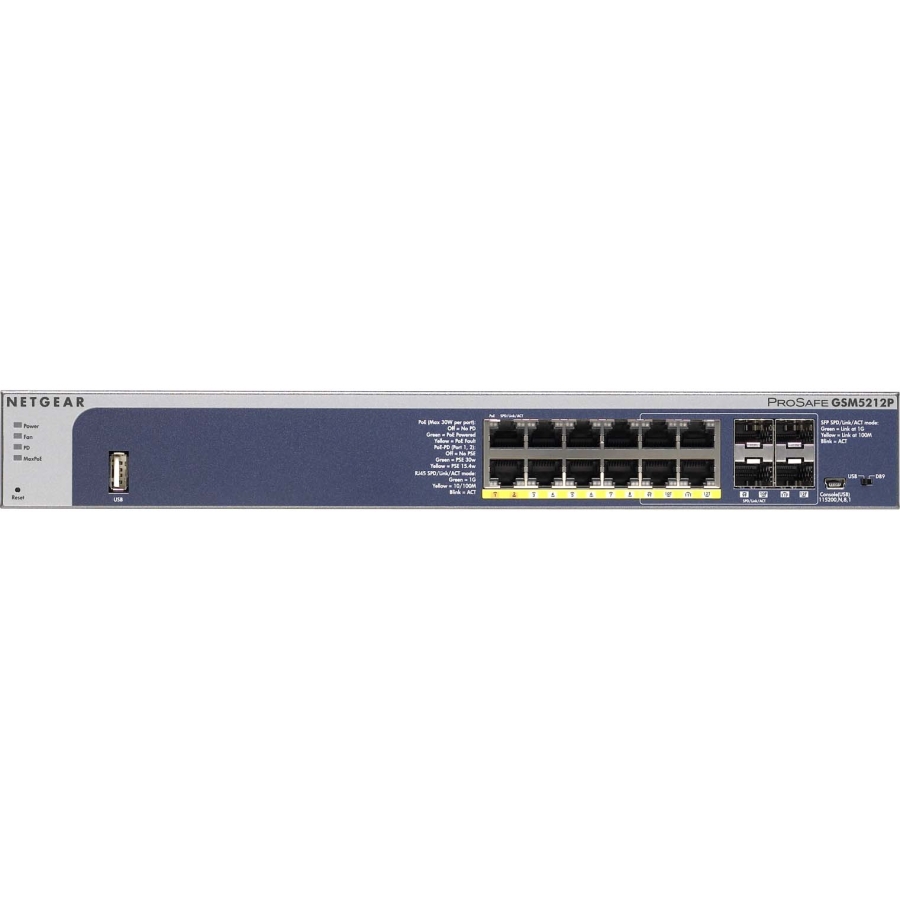

NETGEAR ProSafe GSM5212P

NETGEAR ProSafe GSM5212P

Model ProSafe GSM5212PPart no. GSM5212P-100NESEAN 6064490809646

75 specifications

ProcessorBroadcom BCM53003
Memory128 MB
Speed1 Gbit/s
ConnectivityWired
Noise35.1 dB
Weight2.6 kg

See all specifications

Overview

Processor: Broadcom BCM53003
Memory: 128 MB
Speed: 1 Gbit/s
Connectivity: Wired
Noise: 35.1 dB
Weight: 2.6 kg

Brand: NETGEAR
Category: Network Switch
Model: ProSafe GSM5212P
Part number: GSM5212P-100NES
EAN / UPC: 6064490809646, 102930811685, 151903044193, 191120044729 +7 more
Also known as: NETGEAR ProSafe GSM5212P Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Specifications

75 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
MIB support	MIB-II, Bridge MIB, Etherlike-MIB, SMIv2, VLAN MIB, Client MIB, Entity MIB v2, RMON-MIB, PAE-MIB, LLDP MIB

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Fiber ports quantity	4
Fiber optic connector	SFP
Console port	RS-232
USB 2.0 ports quantity	1
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
Port mirroring	Yes
IP routing	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Number of VLANs	1024

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE‑LX, 1000BASE‑SX, 100BASE-FX

Data transmission

Specification	Value
MAC address table	16000 entries
Supported data transfer rates	10/100/1000 Mbps
Switching capacity	24 Gbit/s
Throughput	17.8 Mpps
Store-and-forward	Yes
Number of trunks	12
Number of queues	8
Number of static routes	16
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	12 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, EAP, HTTPS, SSL/TLS
Static port security	Yes

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	SNMP v1/2/3, SMI v1/2, HTTP 1.1
Data link protocols	LLDP
Supported network protocols	IP, IPv4, IPv6, TCP/UDP, TFTP, DoS, ICMP, ARP, BOOTP, SNTP, SFTP, BSD, Telnet

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Product colour	Grey
Safety	CE, CSA, UL/cUL, EN

Performance

Specification	Value
Built-in processor	Yes
Processor model	Broadcom BCM53003
Processor frequency	600 MHz
Memory type	RAM
Internal memory	128 MB
Flash memory	32 MB
Noise level	35.1 dB
Mean time between failures (MTBF)	766618 h

Power

Specification	Value
Power consumption (typical)	125 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes

Other features

Specification	Value
Latency	3.1 - 9
Dimensions (WxDxH)	331 x 208 x 44 mm
Connectivity technology	Wired
Networking features	Gigabit Ethernet
Wi-Fi	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m

Weight & dimensions

Specification	Value
Weight	2.6 kg

Certificates

Specification	Value
Certification	CE, FCC, VCCI, EN (CISPR 22), C-Tick
