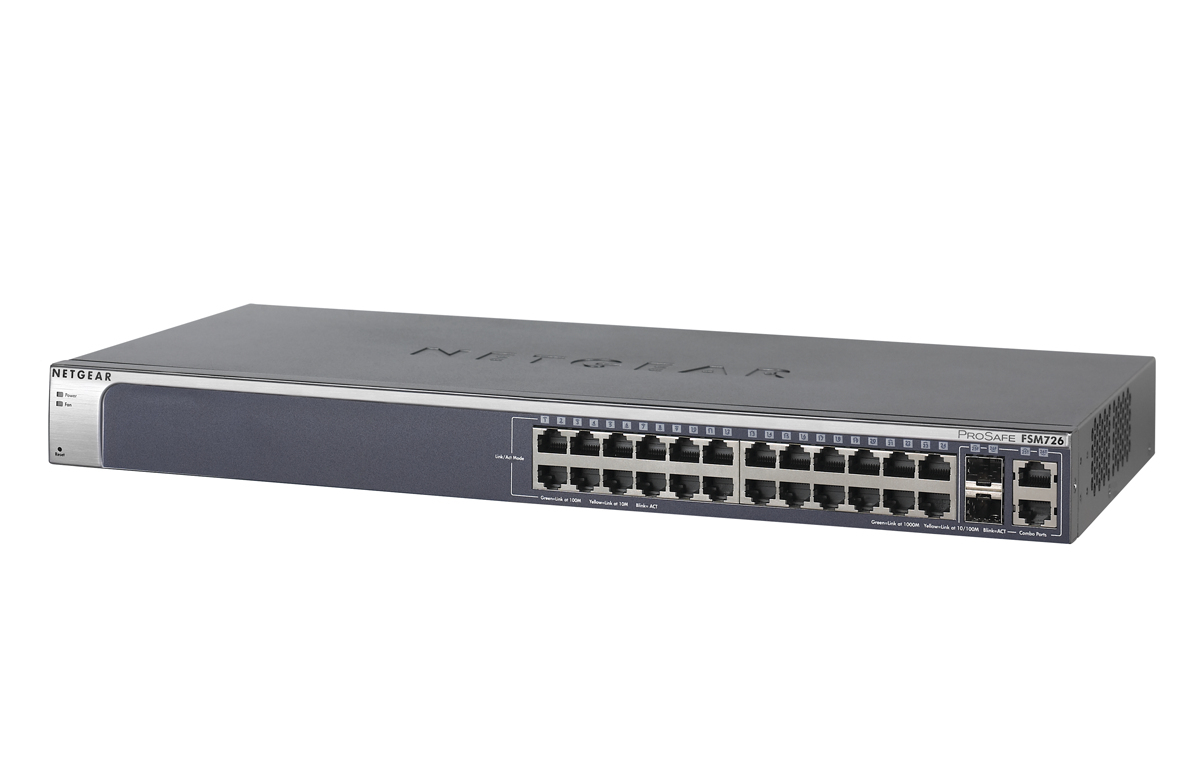

NETGEAR ProSafe FSM726
Model ProSafe FSM726Part no. FSM726-300NASEAN 606449069495
50 specifications
- Memory128 MB
- Speed1 Gbit/s
- Noise36.6 dB
- Weight2.8 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Noise
- 36.6 dB
- Weight
- 2.8 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- ProSafe FSM726
- Part number
- FSM726-300NAS
- EAN / UPC
- 606449069495
- Also known as
- NETGEAR ProSafe FSM726 Managed L2
Specifications
50 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Console port | RS-232 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | No |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Number of VLANs | 512 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Number of trunks | 24 |
| Number of queues | 8 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
| Supported network protocols | SNTP |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| LED indicators | LAN, Power, Status |
| Number of fans | 1 fan(s) |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Noise level | 36.6 dB |
| Mean time between failures (MTBF) | 562110 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 15 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 80ms |
| Dimensions (WxDxH) | 440 x 205 x 43 mm |
| Bandwidth | 8.8 Gbit/s |
| Input frequency | 50 - 60 Hz |
| Networking features | Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 50 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22), Class A, C-Tick |
