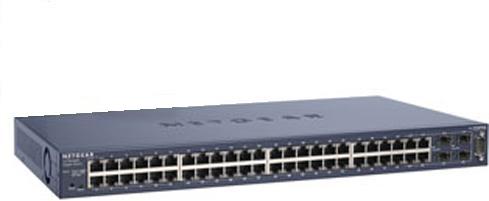

NETGEAR ProSafe™ 48 Port Gigabit L2 Managed Switch
Model ProSafe™ 48 Port Gigabit L2 Managed SwitchPart no. GSM7248EUEAN 606449041057
24 specifications
- Memory64 MB
- Speed1 Gbit/s
- Weight4.2 kg
- Basic switching RJ-45 Ethernet ports quantity48
- Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table8000 entries
Overview
- Memory
- 64 MB
- Speed
- 1 Gbit/s
- Weight
- 4.2 kg
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table
- 8000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- ProSafe™ 48 Port Gigabit L2 Managed Switch
- Part number
- GSM7248EU
- EAN / UPC
- 606449041057, 6064490410576
- Also known as
- NETGEAR ProSafe™ 48 Port Gigabit L2 Managed Switch
Specifications
24 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 96 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.122 MB |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet/ Fast Ethernet/ Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| LED indicators | Link |
| Safety | CE mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/CUL IEC950/EN60950 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 64 MB |
| Mean time between failures (MTBF) | 57800 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 90 W |
Other features
| Specification | Value |
|---|---|
| Latency | 20µs for 64-byte frames |
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 440 x 257 x 43 mm |
| Power requirements | 100-240VAC/50-60 Hz |
| Acoustic pressure emissions | 47 dB |
| Electromagnetic emissions | CE mark, commercial; FCC Part 15 Class A; VCCI Class A-EN 55022 (CISPR 22), Class A; C-Tick |
| I/O ports | -48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink and auto-negotiate on all ports) -4 SFP connectors for fiber connection (shared with the last four copper ports) - RS-232 Console Port |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 95 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.2 kg |
