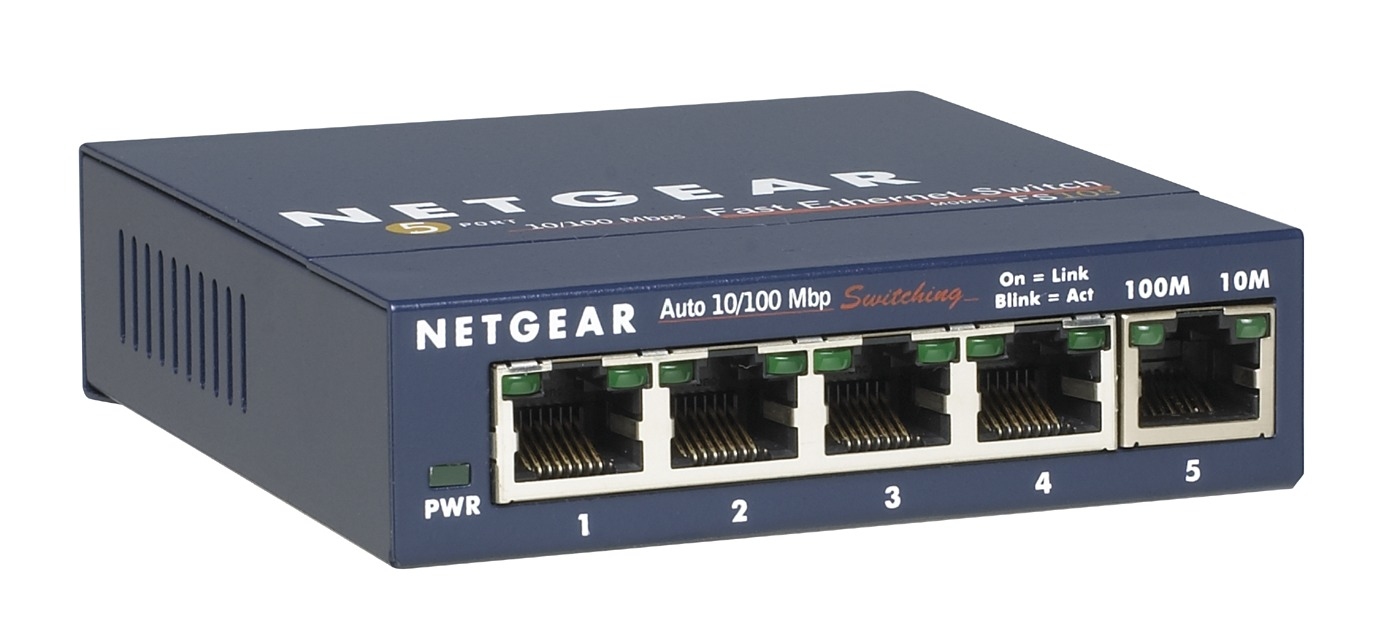

NETGEAR ProSafe 5-Port 10/100 Desktop Switch
Model ProSafe 5-Port 10/100 Desktop SwitchPart no. FS105AU
31 specifications
- Speed0.1 Gbit/s
- Weight280 g
- ColourBlue
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3u, IEEE 802.3x
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 280 g
- Colour
- Blue
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3u, IEEE 802.3x
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- ProSafe 5-Port 10/100 Desktop Switch
- Part number
- FS105AU
- Also known as
- NETGEAR ProSafe 5-Port 10/100 Desktop Switch Unmanaged Blue
Specifications
31 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Blue |
| Safety | UL 1950/cUL; IEC950/EN60950 |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Windows, Linux, Mac OS |
| Mean time between failures (MTBF) | 393000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 20 µs |
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 94 x 103 x 27 mm |
| Power requirements | 7.5VDC, 1A |
| Wi-Fi | No |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | CE, FCC 15 A; EN55 022 (CISPR22), A; VCCI A; C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 280 g |
