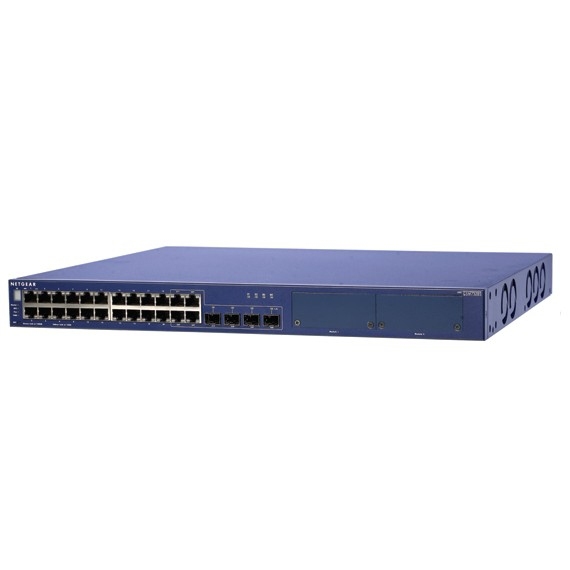

NETGEAR ProSafe 24-Port Layer 3 Managed, Stackable, Gigabit Switch
Model ProSafe 24-Port Layer 3 Managed, Stackable, Gigabit SwitchPart no. GSM7328SEUEAN 606449042986
47 specifications
- Memory256 MB
- Speed1 Gbit/s
- Noise56.07 dB
- Weight4.5 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 256 MB
- Speed
- 1 Gbit/s
- Noise
- 56.07 dB
- Weight
- 4.5 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- ProSafe 24-Port Layer 3 Managed, Stackable, Gigabit Switch
- Part numbers
- GSM7328SEU, GSM7328SNA
- EAN / UPC
- 606449042986, 6064490429868, 606449042979
- Also known as
- NETGEAR ProSafe 24-Port Layer 3 Managed, Stackable, Gigabit Switch L3
Specifications
47 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | RFC 1213 MIB II, RFC 1493 Bridge MIB, Private Enterprise MI |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000/10000 Mbps |
| Switching capacity | 144 Gbit/s |
| Number of trunks | 6 |
| Number of queues | 8 |
| Number of static routes | 512 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3, RFC 2236 IGMP v2, SNTP |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Safety | CE, CSA (CSA 22.2 #950), UL (UL 1950)/CUL IEC950/EN60950 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 56.07 dB |
| Mean time between failures (MTBF) | 117747 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 80 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Management platform | CLI, Telnet, TLS v1 |
| Latency | 80µ |
| Dimensions (WxDxH) | 440 x 385 x 43 mm |
| Power requirements | 100-240V; 50/60Hz |
| Wi-Fi | No |
| Electromagnetic emissions | CE, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22), C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Non-operating altitude | 3000 |
| Heat dissipation | 18.99 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.5 kg |
