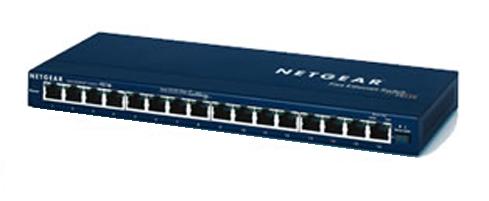

NETGEAR ProSafe 16 Port Switch (with 8 Power x Power over Ethernet (PoE) Ports)
Model ProSafe 16 Port Switch (with 8 Power x Power over Ethernet (PoE) Ports)Part no. FS116PUK
20 specifications
- Speed0.1 Gbit/s
- Weight840 g
- Basic switching RJ-45 Ethernet ports quantity16
- Copper ethernet cabling technology100BASE-TX, 10BASE-T
- MAC address table1000 entries
- Data link protocolsEthernet, Fast Ethernet
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 840 g
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Copper ethernet cabling technology
- 100BASE-TX, 10BASE-T
- MAC address table
- 1000 entries
- Data link protocols
- Ethernet, Fast Ethernet
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- ProSafe 16 Port Switch (with 8 Power x Power over Ethernet (PoE) Ports)
- Part number
- FS116PUK
- Also known as
- NETGEAR ProSafe 16 Port Switch (with 8 Power x Power over Ethernet (PoE) Ports)
Specifications
20 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 3.2 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.096 MB |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
Design
| Specification | Value |
|---|---|
| Safety | CE mark, commercial; CE/LVD EN60950 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 116009 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 88 W |
Other features
| Specification | Value |
|---|---|
| Latency | 20 µs for 64-byte frames |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 287 x 103 x 27 mm |
| Power requirements | 48VDC, 4.5 power output |
| Electromagnetic emissions | CE mark, commercial, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22) Class A, C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 10 - 70 °C |
| Storage relative humidity (H-H) | 95 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 840 g |
