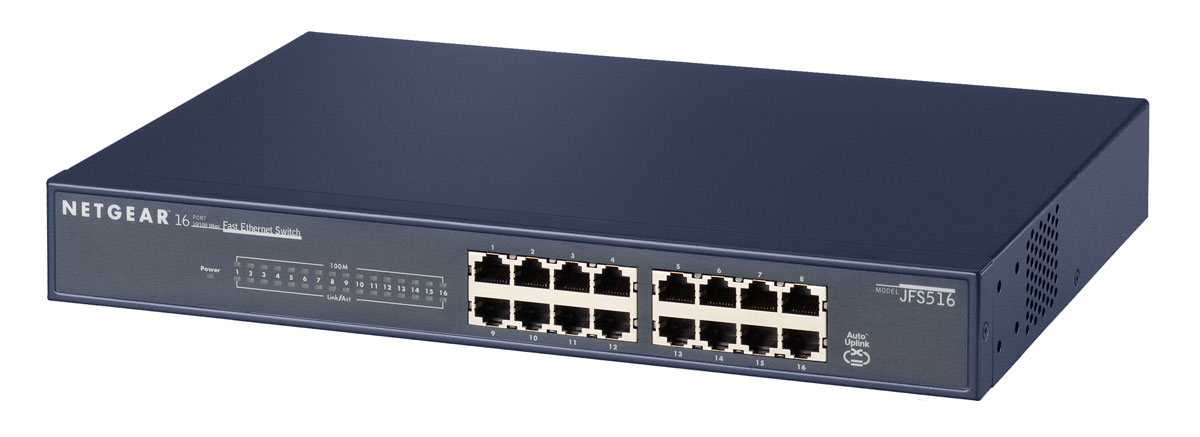

NETGEAR ProSafe 16-Port 10/100 Rackmount Switch
Model ProSafe 16-Port 10/100 Rackmount SwitchPart no. JFS516NAEAN 6064490228102
24 specifications
- Speed0.1 Gbit/s
- Weight2 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- Networking standardsIEEE 802.3i, IEEE 802.3u
- MAC address table4000 entries
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 2 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Networking standards
- IEEE 802.3i, IEEE 802.3u
- MAC address table
- 4000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- ProSafe 16-Port 10/100 Rackmount Switch
- Part numbers
- JFS516NA, JFS516GE, JFS516, JFS516UK
- EAN / UPC
- 6064490228102, 606449023800, 6064490238002, 4005922146658 +3 more
- Also known as
- NETGEAR ProSafe 16-Port 10/100 Rackmount Switch Unmanaged
Specifications
24 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.320 MB |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Safety | UL l(UL 1950)/CUL, TUV (EN 60 950) |
| Compatible products | Compatible with all major network software |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 20 msec |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 330 x 202 x 43 mm |
| Packet transfer speed | 14800/148000 pps |
| Power requirements | 100 - 240V, 50/60 Hz |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | CE, FCC Part 15 Class A, EN 55 022 (CISPR 22), Class A, VCCI Class A, C-Tick, MIC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2 kg |
