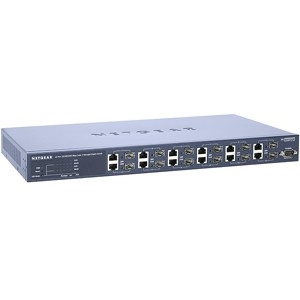

NETGEAR ProSafe 12 Port Layer 2 Managed Gigabit Network Switch
Model ProSafe 12 Port Layer 2 Managed Gigabit Network SwitchPart no. GSM7212EUEAN 606449038903
41 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
- Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table8000 entries
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table
- 8000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- ProSafe 12 Port Layer 2 Managed Gigabit Network Switch
- Part numbers
- GSM7212EU, GSM7212NA
- EAN / UPC
- 606449038903, 6064490389032, 606449038927
- Also known as
- NETGEAR ProSafe 12 Port Layer 2 Managed Gigabit Network Switch L2
Specifications
41 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
| MIB support | RFC 1213 MIB II, RFC 1493 Bridge MIB, RFC 1643 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Gigabit Ethernet (copper) ports quantity | 12 |
| SFP module slots quantity | 12 |
| SFP/SFP+ slots quantity | 12 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 24 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Safety | CE, CSA (CSA 22.2 #950), UL (UL 1950)/CUL IEC950/EN60950 |
Performance
| Specification | Value |
|---|---|
| Flash memory | 8 MB |
| Mean time between failures (MTBF) | 61349 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 31 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Management platform | CLI, Telnet |
| Latency | 20ms |
| Dimensions (WxDxH) | 440 x 257 x 43 mm |
| Connectivity technology | Wired |
| Power requirements | 100-240V; 50/60Hz |
| Wi-Fi | No |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | CE, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22), C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Non-operating altitude | 3000 |
| Heat dissipation | 28.24 BTU/h |
