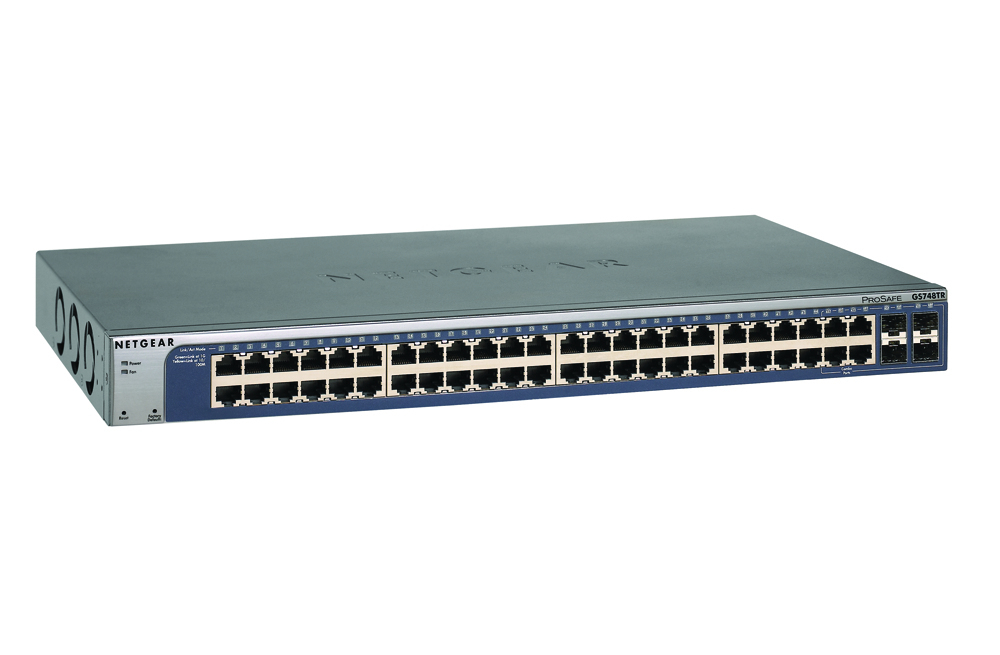

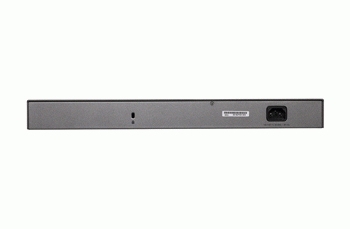

NETGEAR Pro-Safe GS748TR
Model Pro-Safe GS748TRPart no. GS748TR-100EUSEAN 606449054538
31 specifications
- Speed48 Gbit/s
- ConnectivityWired
- Weight4.22 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Port mirroringYes
Overview
- Speed
- 48 Gbit/s
- Connectivity
- Wired
- Weight
- 4.22 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Port mirroring
- Yes
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- Pro-Safe GS748TR
- Part number
- GS748TR-100EUS
- EAN / UPC
- 606449054538, 6064490545384
- Also known as
- NETGEAR Pro-Safe GS748TR Managed
Specifications
31 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 48 Gbit/s |
| Packet buffer memory | 0.750 MB |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
Design
| Specification | Value |
|---|---|
| Safety | PCE, CUL 60950, EN 60950 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 196908 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 71.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 5 ms |
| Dimensions (WxDxH) | 440 x 257 x 43 mm |
| Connectivity technology | Wired |
| Authentication method | RADIUS, TACACS+ |
| Power requirements | 100-240V AC/50-60 Hz |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | CE, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22), EN 55024 (CISPR 24), C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.22 kg |
