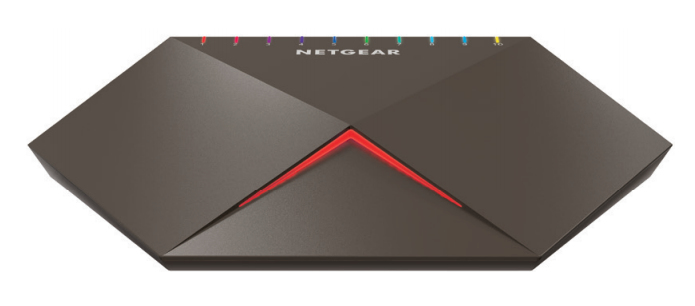

NETGEAR Nighthawk SX10
Model Nighthawk SX10Part no. GS810EMX-100PESEAN 606449130454
33 specifications
- Weight1.51 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity10
- Virtual LAN featuresPort-based VLAN
- MAC address table16000 entries
- DHCP featuresDHCP client
Overview
- Weight
- 1.51 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 10
- Virtual LAN features
- Port-based VLAN
- MAC address table
- 16000 entries
- DHCP features
- DHCP client
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- Nighthawk SX10
- Part numbers
- GS810EMX-100PES, GS810EMX-100NAS
- EAN / UPC
- 606449130454, 606449130430
- Also known as
- NETGEAR Nighthawk SX10 Managed L3 10G Ethernet (100/1000/10000)
Specifications
33 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Virtual LAN features | Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Password protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 128 entries |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Input current | 2.5 A |
| Input voltage | 12 V |
| Power consumption (typical) | 5.54 W |
| Power consumption (max) | 14.19 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 48.45 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 268 mm |
| Depth | 203 mm |
| Height | 93 mm |
| Weight | 1.51 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, CE LVD, EAC, AU/NZ |
