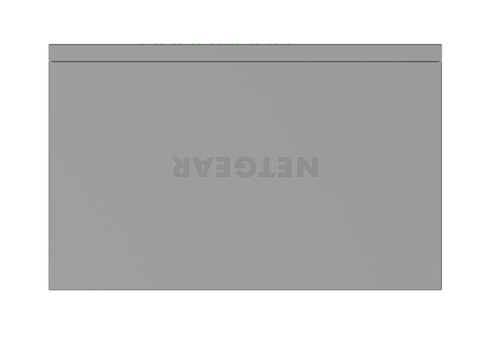

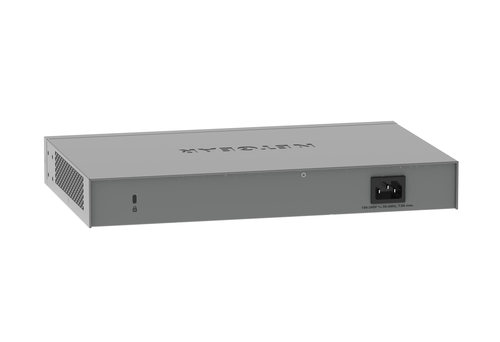

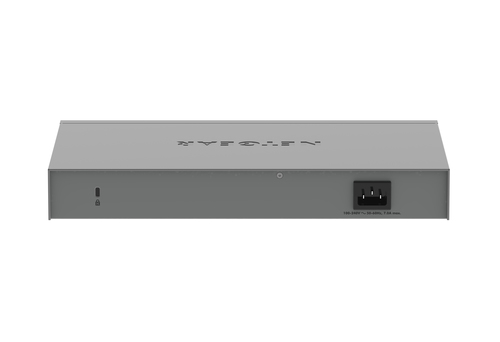

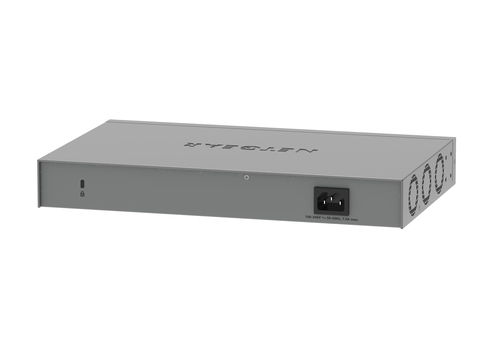

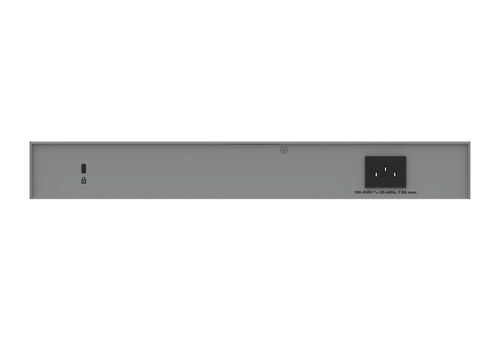

10-Port PoE Multi-Gigabit/10G Ethernet Smart Switch (MS510TXUP)
Model MS510TXUPPart no. MS510TXUP-100PRSEAN 10606449152408
60 specifications
- Memory256 MB
- Noise33 dB
- Weight2.51 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Memory
- 256 MB
- Noise
- 33 dB
- Weight
- 2.51 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- MS510TXUP
- Part numbers
- MS510TXUP-100PRS, MS510TXUP-100NAS, MS510TXUP-100EUS, MS510TXUP, MS510TXUP-100AJS
- EAN / UPC
- 10606449152408, 606449152388, 10606449152392, 606449152395 +2 more
- Also known as
- NETGEAR 10-Port PoE Multi-Gigabit/10G Ethernet Smart Switch (MS510TXUP)
Specifications
60 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 140 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | WRR+SP |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Activity, Fan fail, Link, PoE, Power, Speed |
| Number of fans | 3 fan(s) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Noise level | 33 dB |
| Mean time between failures (MTBF) | 1059519 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power consumption (max) | 380 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 295 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 1294.5888 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 320 mm |
| Depth | 206 mm |
| Height | 43 mm |
| Weight | 2.51 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Rack rails | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
