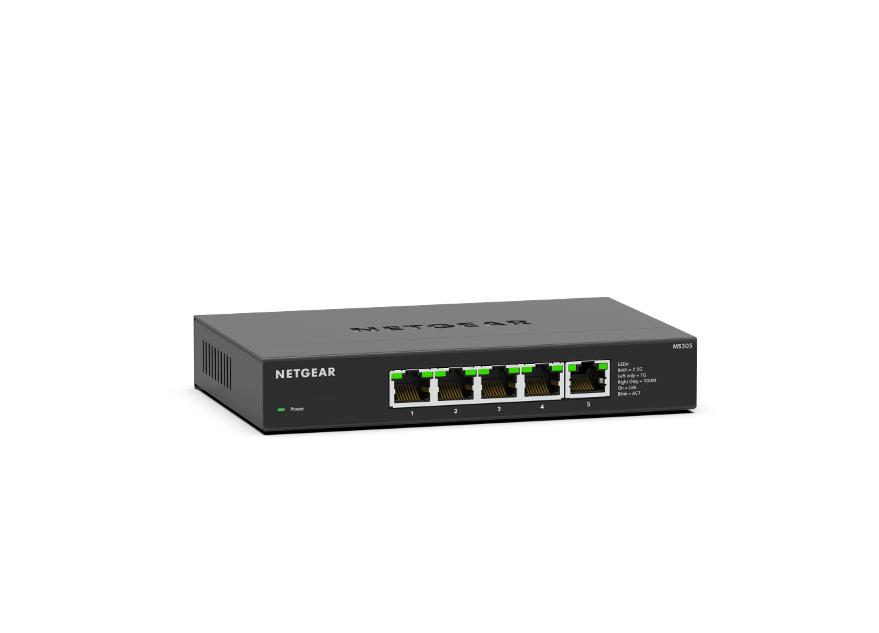

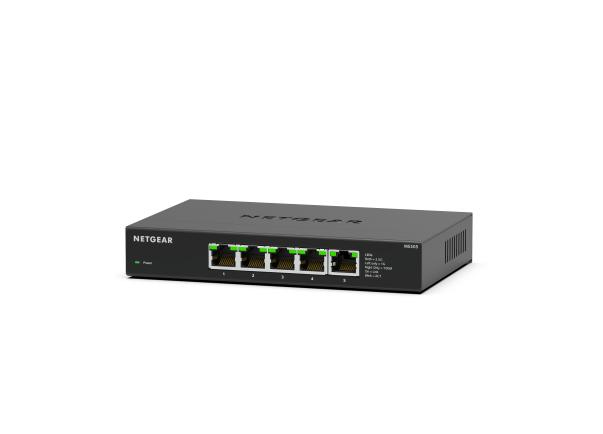

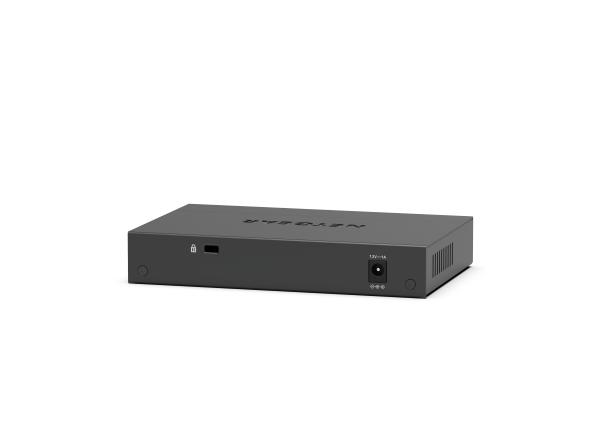

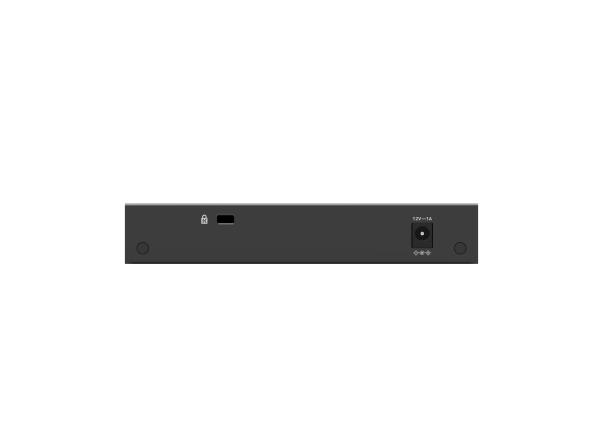

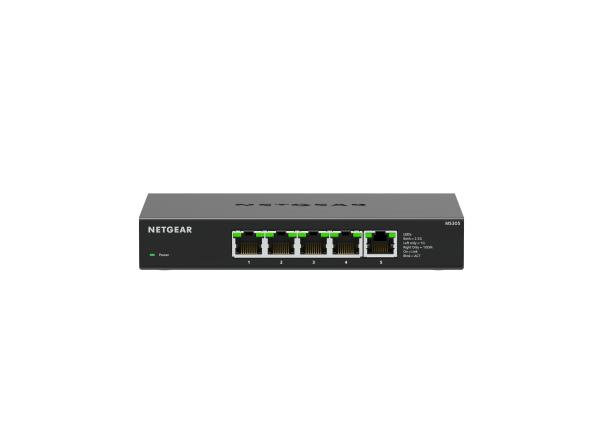

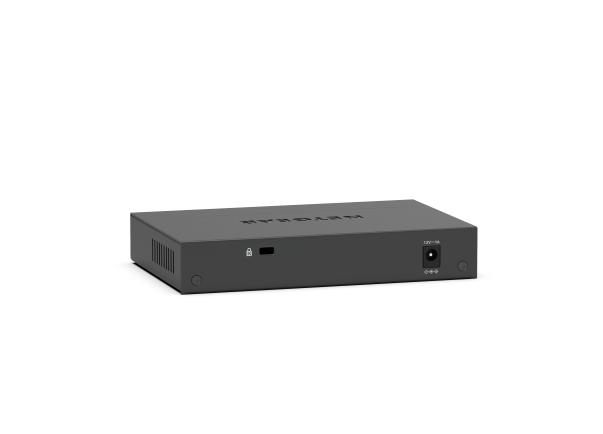

MS305 Unmanaged
2.5G Ethernet (100/1000/2500) Black
Model MS305Part no. MS305-100EUSEAN 606449160123
44 specifications
- Noise0 dB
- Weight480 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Full duplexYes
Overview
- Noise
- 0 dB
- Weight
- 480 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Full duplex
- Yes
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- MS305
- Part numbers
- MS305-100EUS, MS305-100UKS
- EAN / UPC
- 606449160123, 10606449160120, 606449163612
- Also known as
- NETGEAR MS305 Unmanaged 2.5G Ethernet (100/1000/2500) Black
Specifications
44 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Cable length detection | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Head-of-line (HOL) blocking | Yes |
Data transmission
| Specification | Value |
|---|---|
| Forwarding rate | 3.72 Mpps |
| Latency (1 Gbps) | 2458 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9720 |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 0 fan(s) |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Noise level | 0 dB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 1401743 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Input voltage | 12 V |
| Power consumption (typical) | 4.6 W |
| Power consumption (max) | 9.24 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 480 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CCC, Low Voltage Directive (LVD) |
