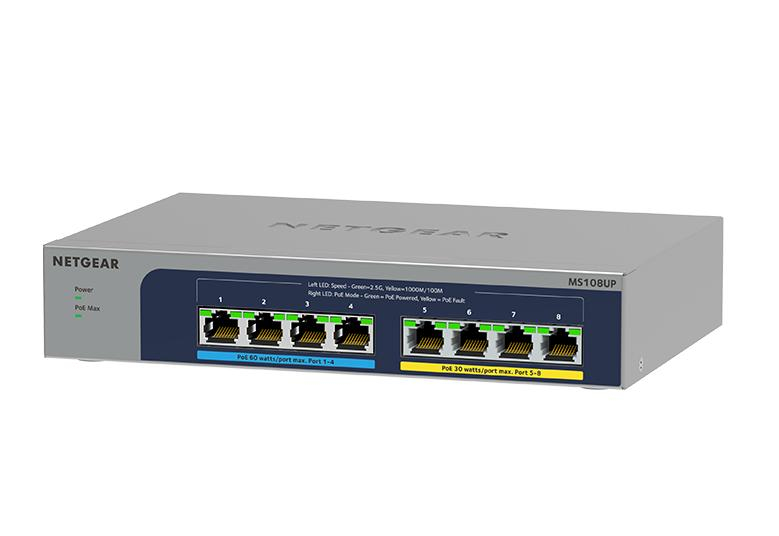

MS108UP Unmanaged
2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
Model MS108UPPart no. MS108UP-100EUSEAN 606449156898
48 specifications
- Weight900 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table16000 entries
- FanlessYes
Overview
- Weight
- 900 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 16000 entries
- Fanless
- Yes
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- MS108UP
- Part numbers
- MS108UP-100EUS, MS108UP-100NAS, MS108UP-100AUS
- EAN / UPC
- 606449156898, 606449156874, 10606449156871
- Also known as
- NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
Specifications
48 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Number of VLANs | 64 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Latency (1 Gbps) | 3.593 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffer memory | 1.5 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Number of fans | 0 fan(s) |
| Wall mountable | Yes |
| Electromagnetic compatibility | CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
| Mean time between failures (MTBF) | 373643.7 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 54 V |
| Input current | 4.7 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 230 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 923.49 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 140 mm |
| Height | 40 mm |
| Weight | 900 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, CSA, CCC, BSMI, RCM |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
