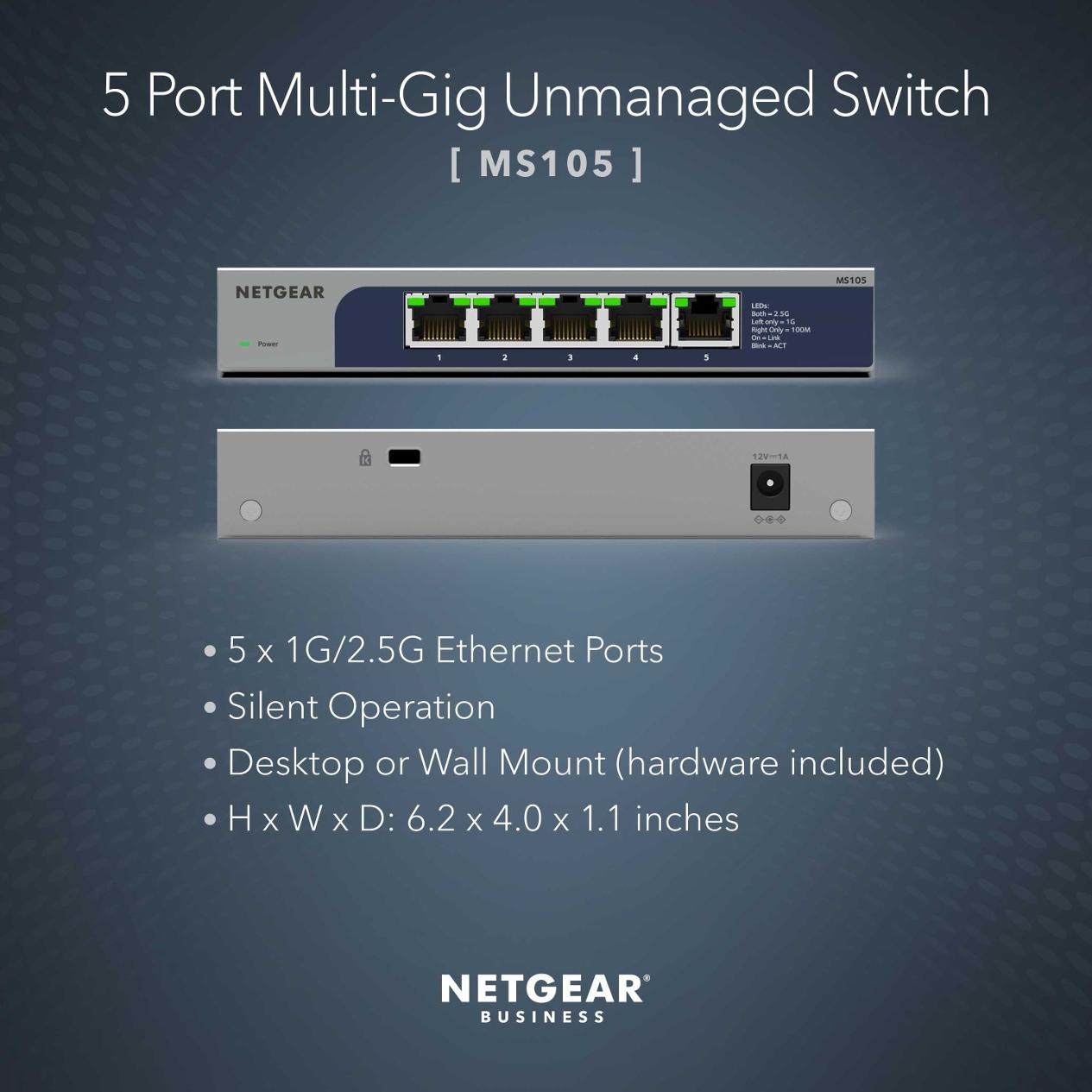

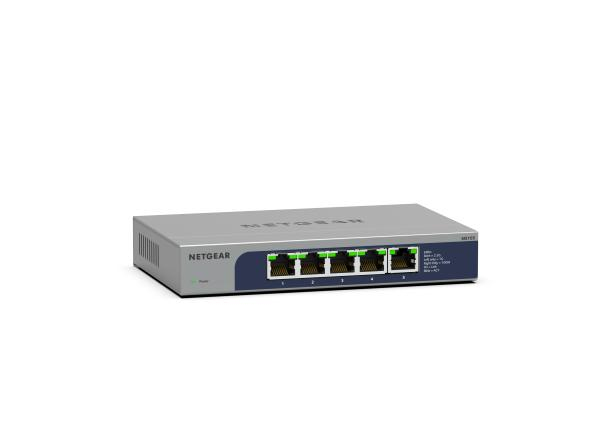

MS105-100EUS network switch Unmanaged
2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U
Model MS105-100EUSEAN 606449160093
23 specifications
- Type1U
- Weight480 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table16000 entries
Overview
- Type
- 1U
- Weight
- 480 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- MS105-100EUS
- Part numbers
- MS105-100EUS, MS105-100NAS
- EAN / UPC
- 606449160093, 10606449160090, 606449160109
- Also known as
- NETGEAR MS105-100EUS network switch Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U
Specifications
23 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3x |
| 10G support | No |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 25 Gbit/s |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Power consumption (typical) | 9.24 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 480 g |
