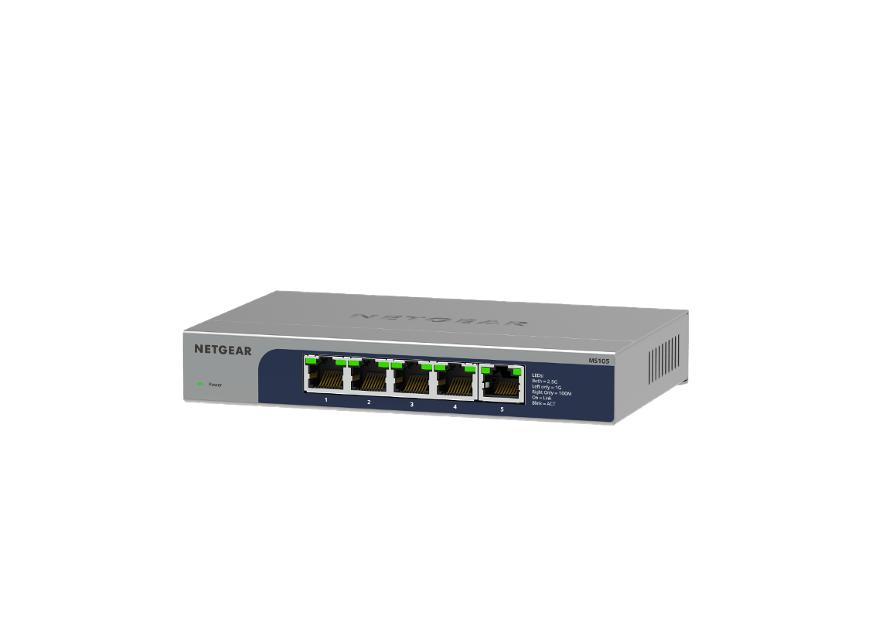

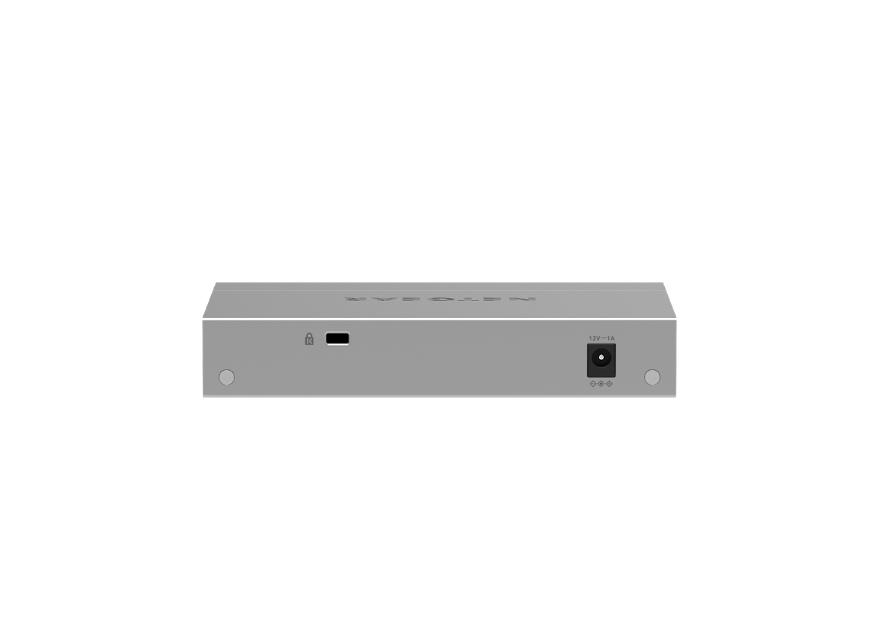

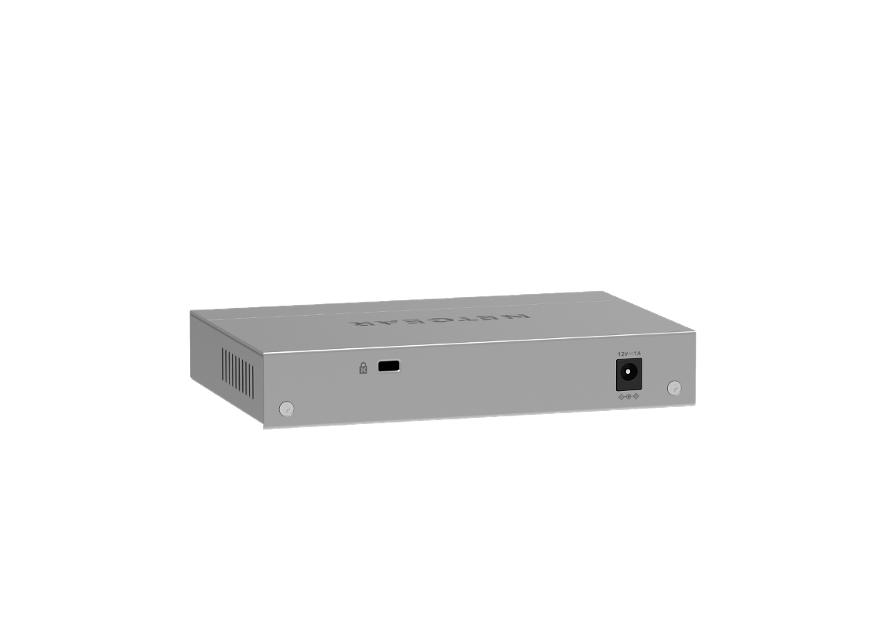

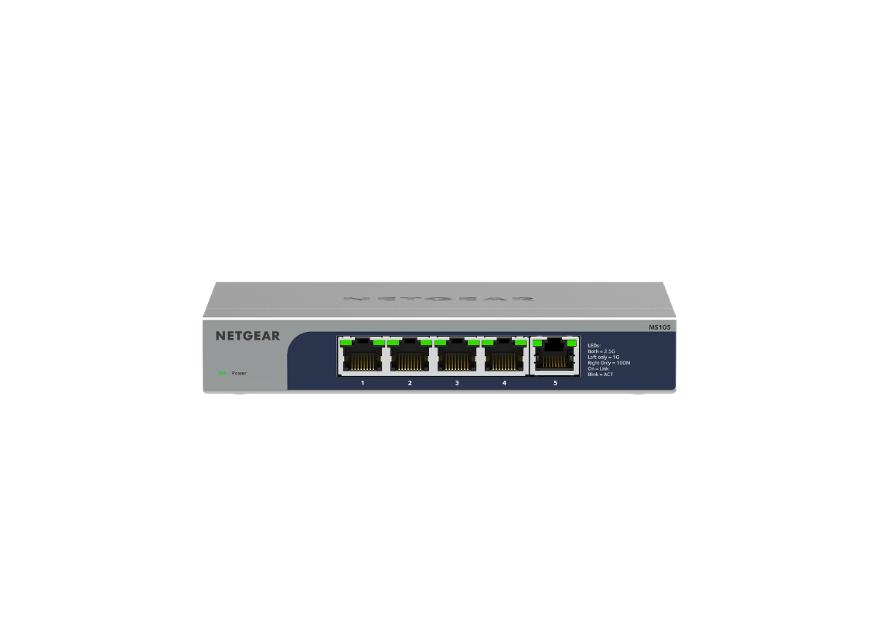

MS105-100AUS network switch Unmanaged
2.5G Ethernet (100/1000/2500) Grey
Model MS105-100AUS
35 specifications
- Weight480 g
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.1p, IEEE 802.3az
- MAC address table16000 entries
Overview
- Weight
- 480 g
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.1p, IEEE 802.3az
- MAC address table
- 16000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- MS105-100AUS
- Part number
- MS105-100AUS
- Also known as
- NETGEAR MS105-100AUS network switch Unmanaged 2.5G Ethernet (100/1000/2500) Grey
Specifications
35 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3az |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 25 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9720 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 0 fan(s) |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
| Mean time between failures (MTBF) | 1401743 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Power consumption (max) | 9.24 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 480 g |
