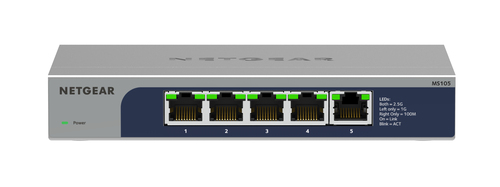

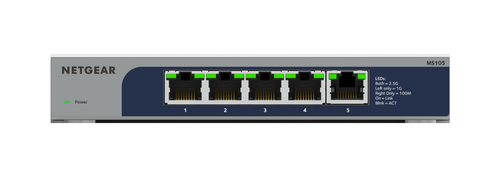

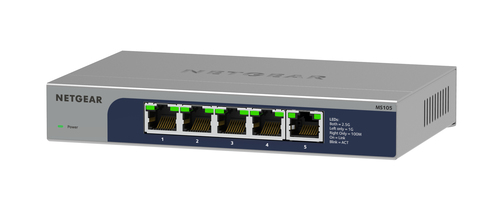

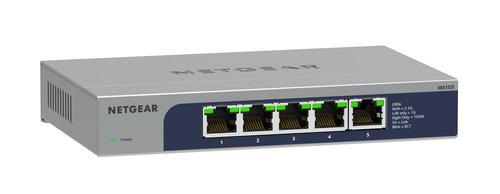

MS105 Unmanaged
2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Blue, Metallic
Model MS105Part no. MS105-100UKSEAN 606449163544
54 specifications
- Noise0 dB
- TypeDesktop/Wall-Mounting
- Weight480 g
- ColourBlue, Metallic
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
Overview
- Noise
- 0 dB
- Type
- Desktop/Wall-Mounting
- Weight
- 480 g
- Colour
- Blue, Metallic
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- MS105
- Part number
- MS105-100UKS
- EAN / UPC
- 606449163544
- Also known as
- NETGEAR MS105 Unmanaged 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Blue, Metallic
Specifications
54 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | No |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 2.458 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9720 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffer memory | 1 MB |
Security
| Specification | Value |
|---|---|
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
Design
| Specification | Value |
|---|---|
| Form factor | Desktop/Wall-Mounting |
| Product colour | Blue, Metallic |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Speed |
| Market segment | Business |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Noise level | 0 dB |
| Plug and Play | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 1401743 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 4.6 W |
| Power consumption (max) | 9.24 W |
| Power saving mode (EEE) | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Bandwidth | 25 Gbit/s |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 31.545 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 480 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Rubber feet | Yes |
| Wall mounting kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), ISED, KC, RCM, VCCI |
| Certification | CB, CSA, CCC, BSMI, RCM, CE LVD |
