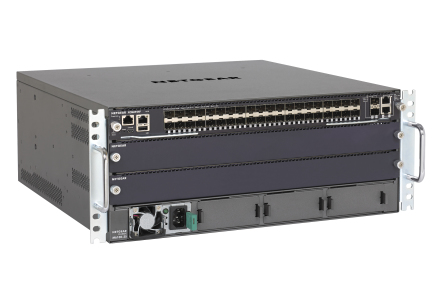

NETGEAR M6100-44GF3 Managed Gigabit Ethernet (10/100/1000) 4U Black, Grey

NETGEAR M6100-44GF3 Managed Gigabit Ethernet (10/100/1000) 4U Black, Grey

Model M6100-44GF3Part no. XCM8903SF-10000SEAN 606449109047

46 specifications
  • Speed10000 Mbit/s
  • Type4U
  • ColourBlack, Grey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity44
  • 10G supportYes
See all specifications

Overview

Speed
10000 Mbit/s
Type
4U
Colour
Black, Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
44
10G support
Yes
Brand
NETGEAR
Model
M6100-44GF3
Part number
XCM8903SF-10000S
EAN / UPC
606449109047
Also known as
NETGEAR M6100-44GF3 Managed Gigabit Ethernet (10/100/1000) 4U Black, Grey

Specifications

46 specifications in 14 groups

Management features

Switch typeManaged
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity44
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity40
SFP+ module slots quantity2
Fiber ports quantity2

Network

Networking standardsIEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G supportYes
Port mirroringYes
Flow control supportYes
Link aggregationYes
VLAN supportYes
Number of VLANs4000

Data transmission

MAC address table32000 entries
Number of queues7
Jumbo frames supportYes

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Security algorithms802.1x RADIUS, HTTPS, SSH, SSL/TLS
Static port securityYes

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN
Supported network protocolsiPv4/iPv6

Design

Rack mountingYes
StackableYes
Form factor4U
Product colourBlack, Grey
Housing materialMetal
Number of fans3 fan(s)
SafetyCE, CSA, UL 1950 /cUL IEC 950/EN 60950

Performance

Maximum data transfer rate10000 Mbit/s

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m

Weight & dimensions

Width432 mm
Depth441.6 mm
Height175.9 mm

Certificates

CertificationCE FCC Part 15 Class A VCCI Class A Class A EN 55022 (CISPR 22) Class A Class A C-Tick EN 50082-1 EN 55024

Logistics data

Harmonized System (HS) code85176990
