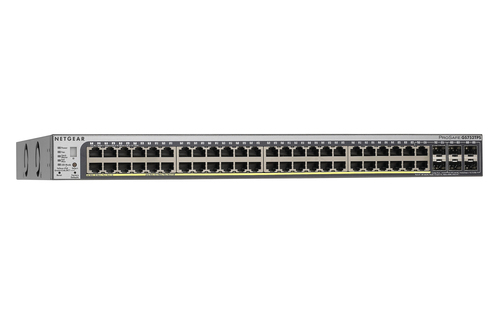

NETGEAR M5300-52G Managed L2+ Power over Ethernet (PoE) 1U Silver

Model M5300-52GPart no. GSM7252S-100NESEAN 6064490854332

85 specifications

Overview

Brand: NETGEAR
Category: Network Switch
Model: M5300-52G
Part number: GSM7252S-100NES
EAN / UPC: 6064490854332, 151903579855, 163120534753, 606449085433 +7 more
Also known as: NETGEAR M5300-52G Managed L2+ Power over Ethernet (PoE) 1U Silver

85 specifications in 16 groups

Specification	Value
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
MIB support	MIB-II, Bridge-MIB, Eth-MIB, VLAN-MIB, SMON-MIB, Client-MIB, Entity-MIB, LLDP-MIB, LLDP-MED-MIB

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	44
SFP/SFP+ slots quantity	4
SFP+ module slots quantity	2
Fiber optic connector	SFP, SFP+
Console port	RS-232

Specification	Value
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Routing entries	128
Broadcast storm control	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4093

Specification	Value
MAC address table	32000 entries
Supported data transfer rates	10/100/1000 Mbps
Switching capacity	384 Gbit/s
Throughput	142.8 Mpps
Store-and-forward	Yes
Number of queues	8
Number of static routes	512
Maximum data transfer rate	10 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	32 MB

Specification	Value
Multicast support	Yes

Specification	Value
Management protocols	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SSH, SSH-2
Supported network protocols	IPv4/IPv6, MAC, IP, TCP, ARP, BOOTP

Specification	Value
Built-in processor	Yes
Processor model	QorIQ P1010
Processor frequency	800 MHz
Internal memory	512 MB
Flash memory	128 MB
Noise level	34.9 dB
Mean time between failures (MTBF)	126162 h

Specification	Value
Power over Ethernet (PoE)	Yes

Specification	Value
Latency	3.5/4.1 µs
Connectivity technology	Wired
Bandwidth	184 Gbit/s
Authentication method	Secure Shell (SSH), Secure Shell v.2 (SSH2), RADIUS, HTTP, HTTPS, Dot1x
Cabling technology	10/100/1000 Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Input frequency	63 Hz
Networking features	Gigabit Ethernet
Power LED	Yes
Wi-Fi	No

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m

Specification	Value
Cables included	AC

Specification	Value
Certification	CE, FCC, VCCI, EN, C-Tick
