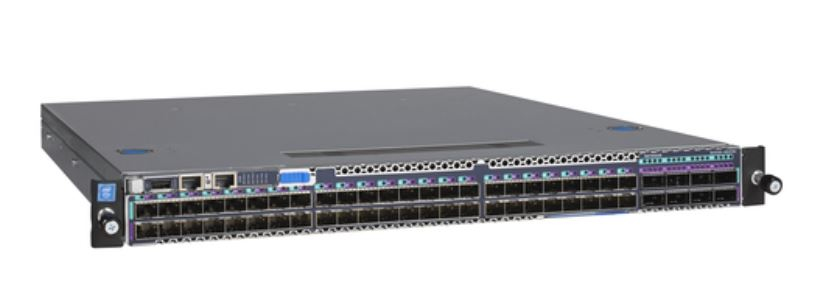

M4500-48XF8C MGD SWCH
Model M4500-48XF8C MGD SWCHPart no. XSM4556-100NASEAN 606449145700
57 specifications
- Memory8000 MB
- Noise64 dB
- Type1U
- Weight9.73 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 8000 MB
- Noise
- 64 dB
- Type
- 1U
- Weight
- 9.73 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- M4500-48XF8C MGD SWCH
- Part number
- XSM4556-100NAS
- EAN / UPC
- 606449145700
- Also known as
- NETGEAR M4500-48XF8C MGD SWCH Managed L2/L3/L4 1U Black
Specifications
57 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Fiber optic connector | QSFP+ |
| Console port | RJ-45 |
| QSFP28 ports quantity | 8 |
| SFP28 ports quantity | 48 |
| USB 2.0 ports quantity | 1 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.3ad |
| 10G support | Yes |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 4000 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SNMP, SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+ |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Internal memory | 8000 MB |
| Flash memory | 256 MB |
| Noise level | 64 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (max) | 426 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.73 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 593 mm |
| Package depth | 888 mm |
| Package height | 186 mm |
| Package weight | 20.9 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024 |
