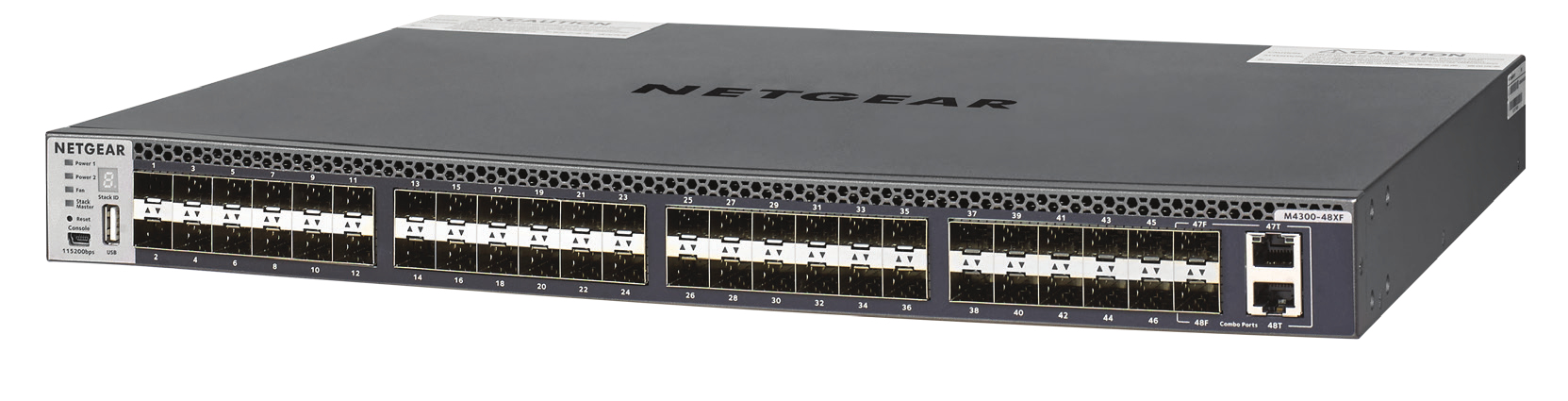

M4300-48XF Managed L3 Black
Model M4300-48XFPart no. XSM4348FS-100AJSEAN 10606449142539
56 specifications
- Memory1024 MB
- Noise42.4 dB
- Weight5.86 kg
- ColourBlack
- Switch typeManaged
- Installed SFP modules quantity0
Overview
- Memory
- 1024 MB
- Noise
- 42.4 dB
- Weight
- 5.86 kg
- Colour
- Black
- Switch type
- Managed
- Installed SFP modules quantity
- 0
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- M4300-48XF
- Part numbers
- XSM4348FS-100AJS, XSM4348FS-100NES
- EAN / UPC
- 10606449142539, 606449142532, 606449142549, 10606449142546
- Also known as
- NETGEAR M4300-48XF Managed L3 Black
Specifications
56 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 48 |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Auto-sensing | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 128000 entries |
| Switching capacity | 960 Gbit/s |
| Throughput | 714 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Number of static routes | 64 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 56 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| BPDU filtering/protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 4000 |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv3, RIP, RIP-1, RIP-2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Airflow direction | Front-to-back airflow |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 8 |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Noise level | 42.4 dB |
| Mean time between failures (MTBF) | 657392 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Number of power supply units | 1 |
| Power consumption (max) | 152.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 577.8 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 535 mm |
| Height | 88 mm |
| Weight | 5.86 kg |
Packaging content
| Specification | Value |
|---|---|
| Rack mount kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
