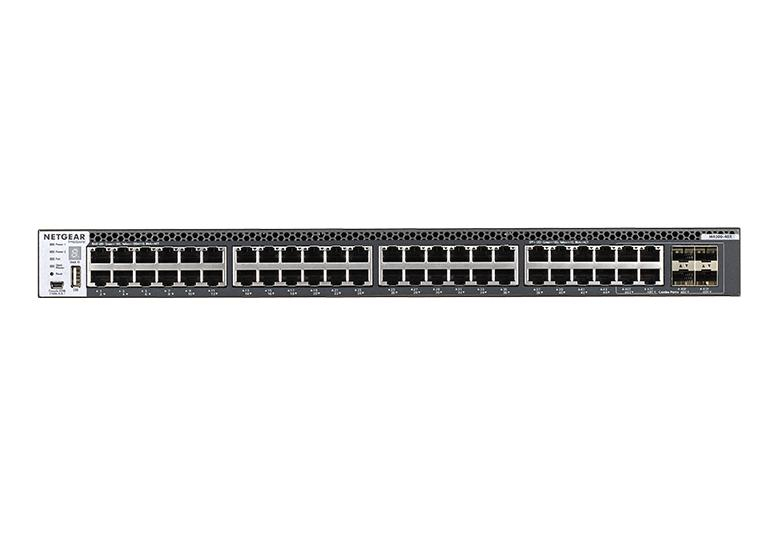

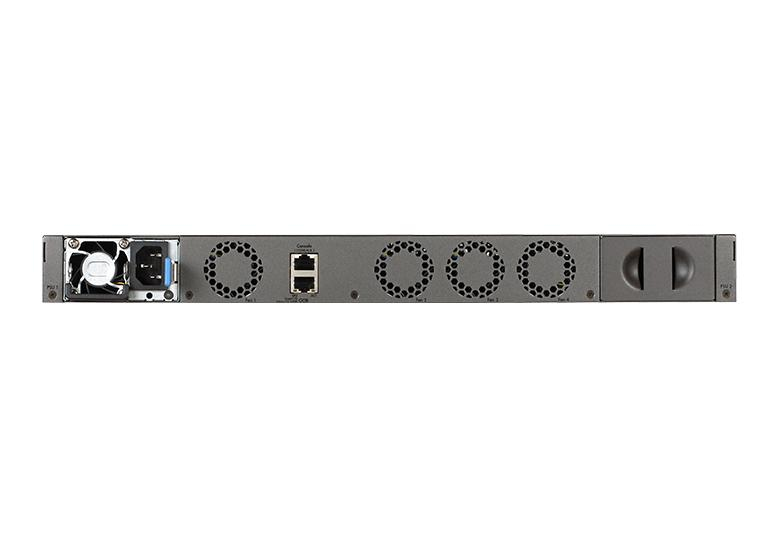

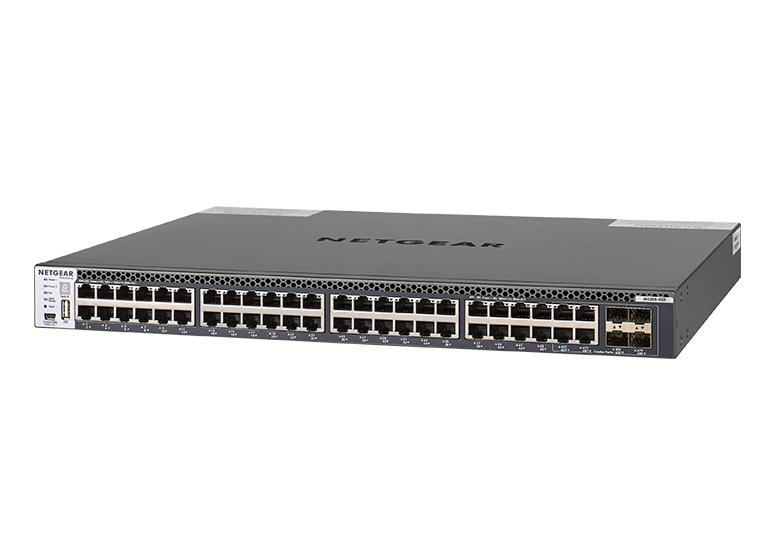

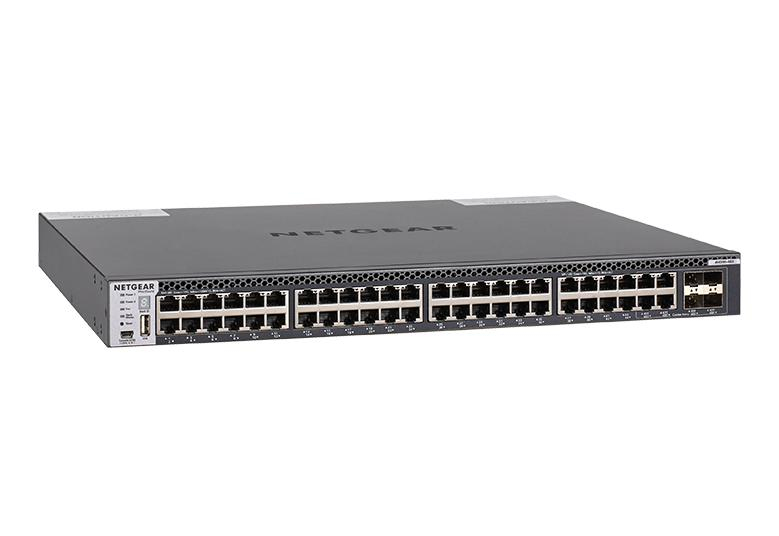

NETGEAR M4300-48X Managed L3
10G Ethernet (100/1000/10000) 1U Black
Model M4300-48XPart no. XSM4348CS-100AJSEAN 10606449114598
40 specifications
- Memory1024 MB
- Noise40.3 dB
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 1024 MB
- Noise
- 40.3 dB
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- M4300-48X
- Part number
- XSM4348CS-100AJS
- EAN / UPC
- 10606449114598
- Also known as
- NETGEAR M4300-48X Managed L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
40 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.3ad, IEEE 802.3aq, IEEE 802.3az |
| 10G support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 128000 entries |
| Switching capacity | 960 Gbit/s |
| Throughput | 714 Mpps |
| Packet buffer memory | 56 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Noise level | 40.3 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 110 - 220 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
