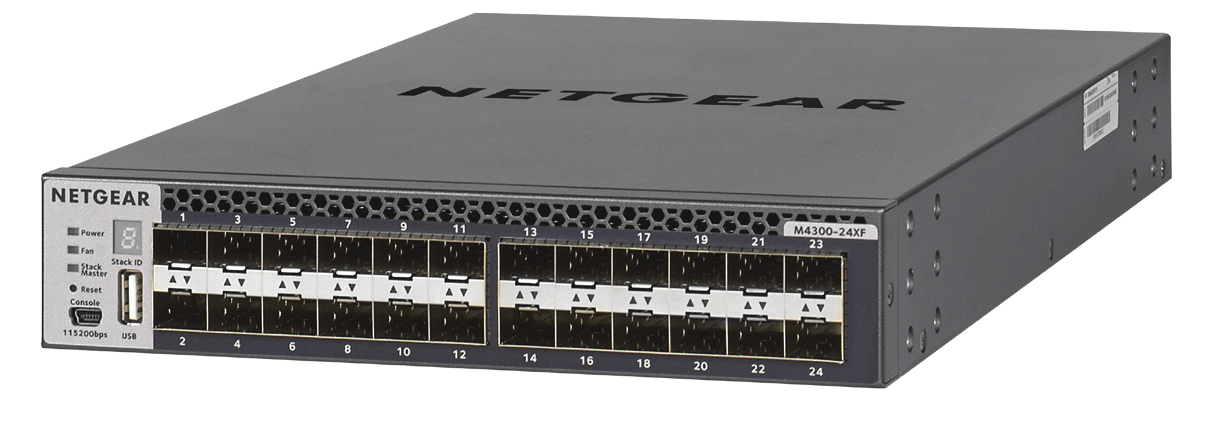

M4300-24XF Managed L3 1U Black, Grey
Model M4300-24XFPart no. XSM4324FS-100AJSEAN 5715063041079
65 specifications
- Memory1024 MB
- Noise39.7 dB
- Type1U
- Weight3.56 kg
- ColourBlack, Grey
- Switch typeManaged
Overview
- Memory
- 1024 MB
- Noise
- 39.7 dB
- Type
- 1U
- Weight
- 3.56 kg
- Colour
- Black, Grey
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- M4300-24XF
- Part numbers
- XSM4324FS-100AJS, XSM4324FS-100NES
- EAN / UPC
- 5715063041079, 606449142488, 10606449142485, 10606449142492
- Also known as
- NETGEAR M4300-24XF Managed L3 1U Black, Grey
Specifications
65 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 24 |

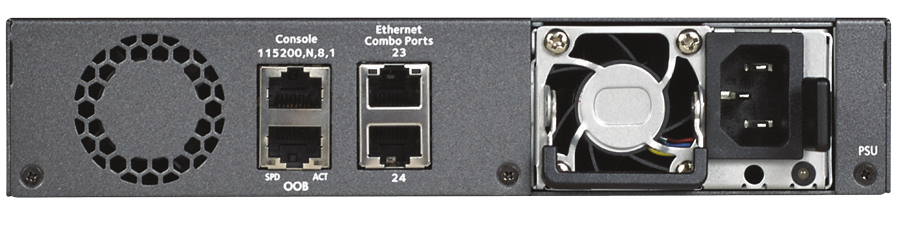

| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 480 Gbit/s |
| Throughput | 357 Mpps |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 2.333 µs |
| Latency (10 Gbps) | 1.323 µs |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 64 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 64 |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv3, RIP, RIP-1, RIP-2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black, Grey |
| Airflow direction | Front-to-back airflow |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 8 |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Noise level | 39.7 dB |
| Mean time between failures (MTBF) | 968447 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Number of power supply units | 1 |
| Power consumption (max) | 87.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 330.6 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 212 mm |
| Depth | 345 mm |
| Height | 44 mm |
| Weight | 3.56 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
