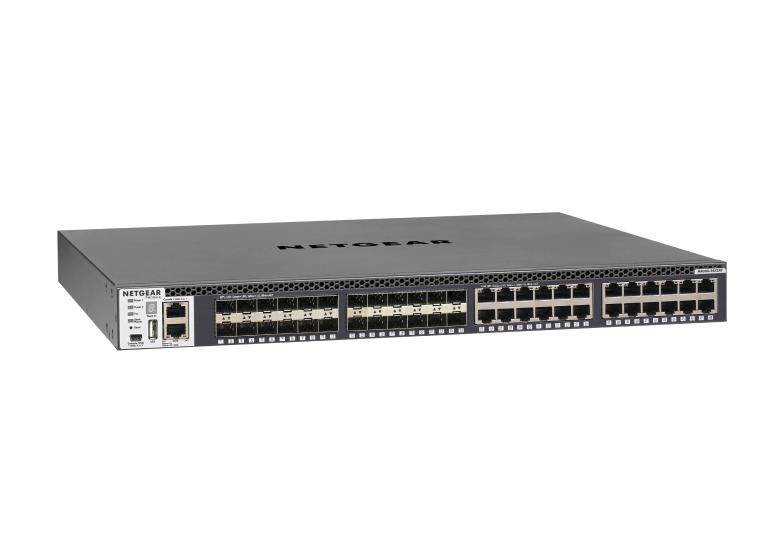

NETGEAR M4300-24X24F Managed L2/L3/L4

NETGEAR M4300-24X24F Managed L2/L3/L4

10G Ethernet (100/1000/10000) 1U Black

Model M4300-24X24FPart no. XSM4348S-100AJSEAN 606449110074

73 specifications

Memory1024 MB
Noise35.8 dB
Type1U
Weight6.12 kg
ColourBlack
Switch typeManaged

See all specifications

Overview

Memory: 1024 MB
Noise: 35.8 dB
Type: 1U
Weight: 6.12 kg
Colour: Black
Switch type: Managed

Brand: NETGEAR
Category: Network Switch
Model: M4300-24X24F
Part numbers: XSM4348S-100AJS, M4300-24X24F
EAN / UPC: 606449110074, 10606449110071
Also known as: NETGEAR M4300-24X24F Managed L2/L3/L4 10G Ethernet (100/1000/10000) 1U Black

Specifications

73 specifications in 14 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	24
Fiber optic connector	SFP+
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1

Network

Specification	Value
Networking standards	IEEE 802.3ad, IEEE 802.3az
10G support	Yes
Cable types supported	Cat5, Cat5e, Cat6, Cat7
Port mirroring	Yes
IP routing	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Auto-sensing	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN
Number of VLANs	4000

Optical fiber

Specification	Value
Fiber ethernet cabling technology	10GBASE-LR, 10GBASE-LRM, 10GBASE-SR

Data transmission

Specification	Value
MAC address table	128000 entries
Switching capacity	960 Gbit/s
Forwarding rate	714 Mpps
Store-and-forward	Yes
Latency (10 Gbps)	2.39 µs
Number of static routes	64
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	56 MB

Security

Specification	Value
DHCP features	DHCP client, DHCP server
Access Control List (ACL)	Yes
BPDU filtering/protection	Yes
SSH/SSL support	Yes
Security algorithms	HTTPS, SNMP, SSH

Multicast features

Specification	Value
Multicast support	Yes
Number of multicast groups filtered	4000

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
LED indicators	Activity, Power, Speed

Performance

Specification	Value
Built-in processor	Yes
Processor frequency	800 MHz
Internal memory	1024 MB
Flash memory	256 MB
Noise level	35.8 dB
Mean time between failures (MTBF)	133176 h

Power

Specification	Value
Power source	AC
Power supply included	Yes
Number of power supply units	1
Power consumption (max)	161 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Heat dissipation	133176 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	345 mm
Height	44 mm
Weight	6.12 kg

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45), Mini-USB
Rack mount kit	Yes
User guide	Yes
