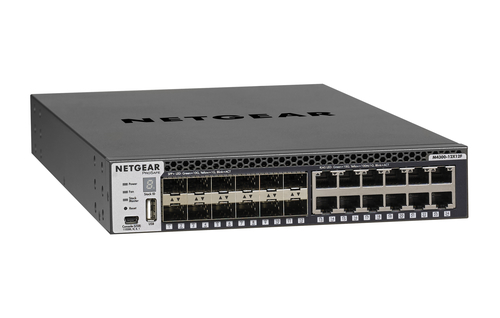

NETGEAR M4300-12X12F Managed L2/L3

10G Ethernet (100/1000/10000) 1U Black

Model M4300-12X12FPart no. XSM4324S-100AJSEAN 10606449110040

78 specifications

Memory1024 MB
Noise36.9 dB
Type1U
Weight3.69 kg
ColourBlack
Switch typeManaged

See all specifications

Overview

Memory: 1024 MB
Noise: 36.9 dB
Type: 1U
Weight: 3.69 kg
Colour: Black
Switch type: Managed

Brand: NETGEAR
Category: Network Switch
Model: M4300-12X12F
Part numbers: XSM4324S-100AJS, XSM4324S-100NES
EAN / UPC: 10606449110040, 606449110036, 10606449110033, 5057103044030 +1 more
Also known as: NETGEAR M4300-12X12F Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black

Specifications

78 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	12
Fiber optic connector	SFP+
USB 2.0 ports quantity	1

Network

Specification	Value
Networking standards	IEEE 802.3ad, IEEE 802.3az
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Auto-sensing	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN
Number of VLANs	4000

Optical fiber

Specification	Value
Fiber ethernet cabling technology	10GBASE-LR, 10GBASE-LRM, 10GBASE-SR

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	480 Gbit/s
Forwarding rate	357 Mpps
Store-and-forward	Yes
Number of static routes	64
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	32 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
BPDU filtering/protection	Yes
SSH/SSL support	Yes
Security algorithms	HTTPS, SNMP, SSH

Multicast features

Specification	Value
Multicast support	Yes
Number of multicast groups filtered	4000

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
LED indicators	Activity, Power, Speed
Safety	CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950
Electromagnetic compatibility	CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024

Performance

Specification	Value
Built-in processor	Yes
Processor frequency	800 MHz
Internal memory	1024 MB
Flash memory	256 MB
Noise level	36.9 dB
Mean time between failures (MTBF)	192898 h

Power

Specification	Value
Power supply included	Yes
Number of power supply units	1
AC input voltage	110 - 230 V
Power consumption (max)	97 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Heat dissipation	36775 BTU/h

Weight & dimensions

Specification	Value
Width	212 mm
Depth	345 mm
Height	44 mm
Weight	3.69 kg

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45), Mini-USB
Rack mount kit	Yes
User guide	Yes

Packaging data

Specification	Value
Resource CD	Yes
Rubber feet	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
