M4250-12M2XF Managed L2/L3
2.5G Ethernet (100/1000/2500) 1U Black
Model M4250-12M2XFPart no. MSM4214X-TAANASEAN 606449168778
59 specifications
- ProcessorARM Cortex-A9
- Memory2048 MB
- Noise46.4 dB
- Type1U
- Weight1.75 kg
- ColourBlack
Overview
- Processor
- ARM Cortex-A9
- Memory
- 2048 MB
- Noise
- 46.4 dB
- Type
- 1U
- Weight
- 1.75 kg
- Colour
- Black
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- M4250-12M2XF
- Part number
- MSM4214X-TAANAS
- EAN / UPC
- 606449168778
- Also known as
- NETGEAR M4250-12M2XF Managed L2/L3 2.5G Ethernet (100/1000/2500) 1U Black
Specifications
59 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

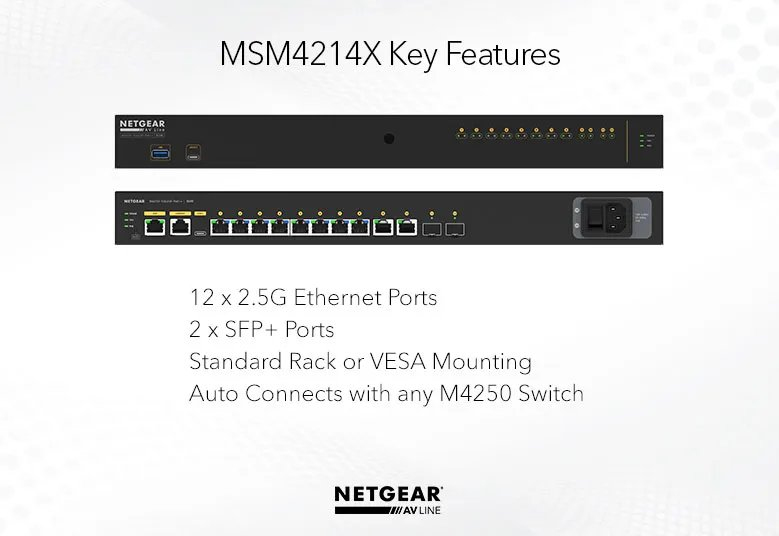

| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3bt |
| 10G support | No |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 100 Gbit/s |
| Throughput | 74.4 Mpps |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 2.84 µs |
| Latency (10 Gbps) | 0.81 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | RADIUS |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| IPv4 multicast entries | 2000 |
| IPv6 multicast entries | 2000 |
Design
| Specification | Value |
|---|---|

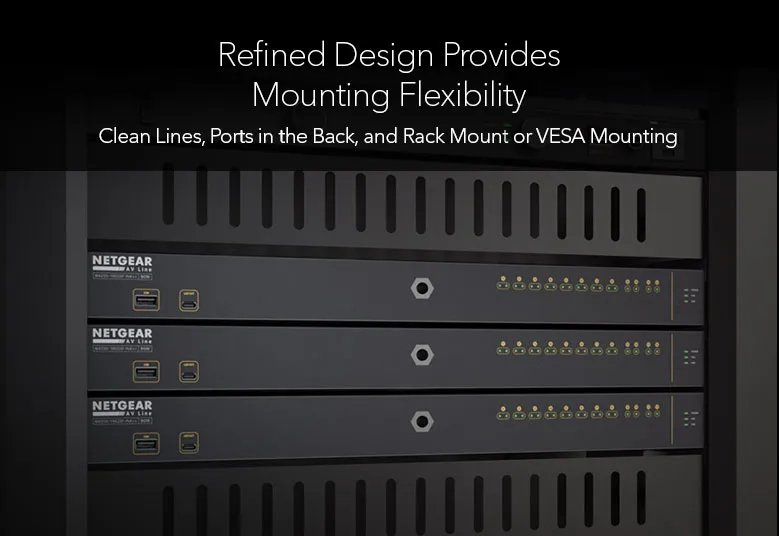

| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1250 MHz |
| Internal memory | 2048 MB |
| Noise level | 46.4 dB |
| Mean time between failures (MTBF) | 720892 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 37.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 129.39 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 100 mm |
| Height | 43.2 mm |
| Weight | 1.75 kg |
