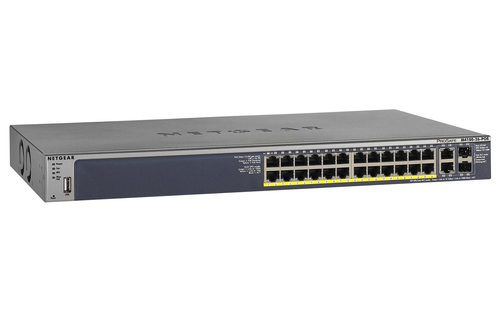

NETGEAR M4100-26G-POE Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Model M4100-26G-POEPart no. GSM7226LP-100NESEAN 6064490880072
28 specifications
- Type1U
- Weight3.79 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity26
- Networking standardsIEEE 802.3af
Overview
- Type
- 1U
- Weight
- 3.79 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 26
- Networking standards
- IEEE 802.3af
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- M4100-26G-POE
- Part number
- GSM7226LP-100NES
- EAN / UPC
- 6064490880072, 012951533407, 163120904662, 606449088007 +3 more
- Also known as
- NETGEAR M4100-26G-POE Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Specifications
28 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Web-based management | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 0 |
| SFP module slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af |
| Virtual LAN features | Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 52 Gbit/s |
| Throughput | 38.69 Mpps |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| sFlow | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 192 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 932 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 257 mm |
| Height | 43.2 mm |
| Weight | 3.79 kg |
