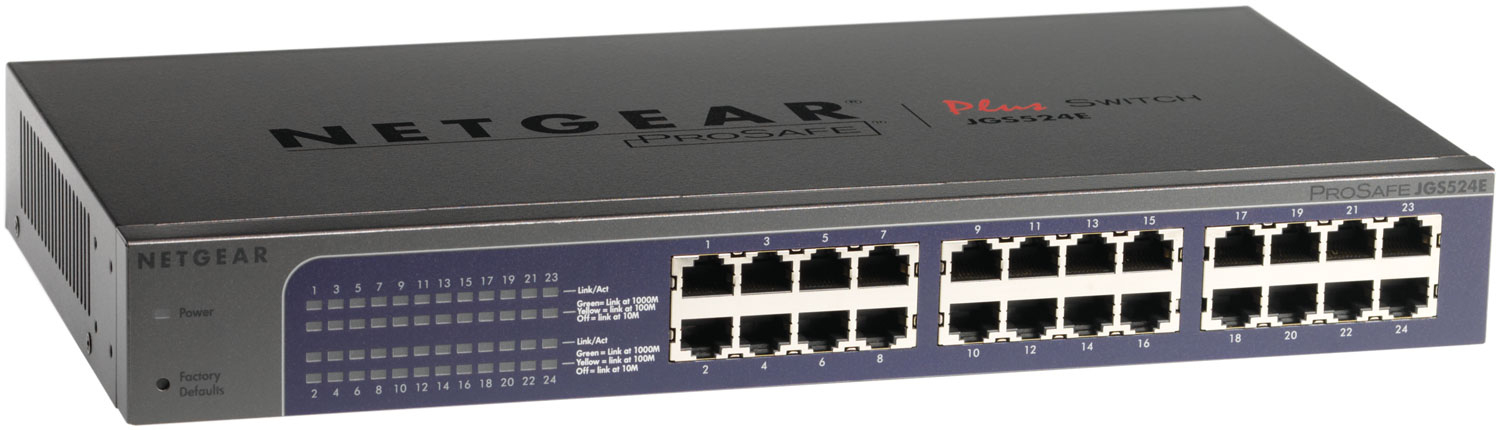

NETGEAR JGS524E Unmanaged
Model JGS524EPart no. JGS524E-200AJSEAN 10606449098935
33 specifications
- Speed2 Gbit/s
- ConnectivityWired
- Weight1.43 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Speed
- 2 Gbit/s
- Connectivity
- Wired
- Weight
- 1.43 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- JGS524E
- Part numbers
- JGS524E-200AJS, JGS524E-100PES, JGS524E-100NAS, JGS524E-100UKS, JGS524E-200NAS, JGS524E-200EUS
- EAN / UPC
- 10606449098935, 606449076684, 163120572946, 606449076677 +15 more
- Also known as
- NETGEAR JGS524E Unmanaged
Specifications
33 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 2 Gbit/s |
| Maximum data transfer rate | 2 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Safety | UL/cUL 60950, CB, CCC |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Windows XP, Vista, 7 |
Power
| Specification | Value |
|---|---|
| Input current | 0.9 A |
| Input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 330 x 173 x 43 mm |
| Connectivity technology | Wired |
| Input frequency | 50 - 60 Hz |
| Networking features | Gigabit Ethernet |
| Wi-Fi | No |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
| Relative humidity | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.43 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, EN 55022, VCCI, C-Tick |
