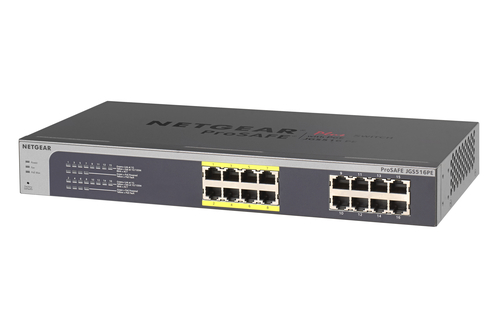

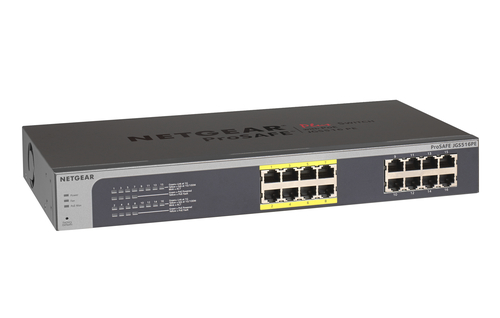

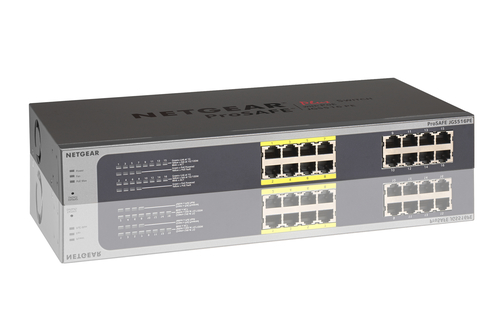

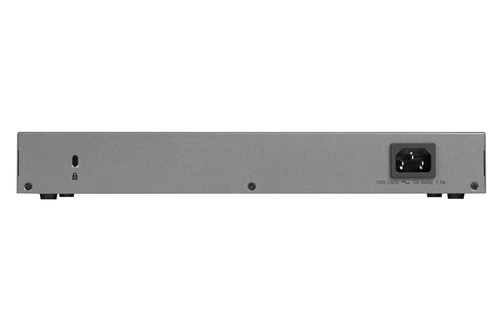

NETGEAR 16-Port PoE Gigabit Ethernet Plus Switch (JGS516PE)
Model JGS516PE-100NASEAN 606449099164
55 specifications
- Weight1.67 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table16000 entries
Overview
- Weight
- 1.67 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- JGS516PE-100NAS
- Part number
- JGS516PE-100NAS
- EAN / UPC
- 606449099164
- Also known as
- NETGEAR 16-Port PoE Gigabit Ethernet Plus Switch (JGS516PE)
Specifications
55 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Compatible memory cards | Not supported |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Number of VLANs | 100 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 6 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 64 |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IEEE 802.3, IEEE 802.3i,IEEE 802.3u, IEEE802.3ab, IEEE 802.1p,IEEE 802.3 af, IEEE 802.1Q, IEEE 802.3x |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 840354 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.5 A |
| Power consumption (typical) | 110 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 85 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 328 mm |
| Depth | 169 mm |
| Height | 43 mm |
| Weight | 1.67 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, CSA, UL 1950/cUL IEC 950/EN 60950 |
