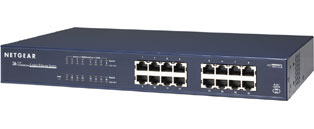

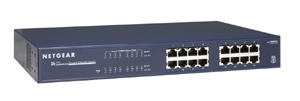

NETGEAR JGS516 ProSafe 16 Port Gigabit Rackmount Switch
Model JGS516 ProSafe 16 Port Gigabit Rackmount SwitchPart no. JGS516NAEAN 6064490363988
18 specifications
- Speed1 Gbit/s
- Weight2.4 kg
- Basic switching RJ-45 Ethernet ports quantity16
- MAC address table8000 entries
- LED indicatorsLink, Power
- Mean time between failures (MTBF)87600 h
Overview
- Speed
- 1 Gbit/s
- Weight
- 2.4 kg
- Basic switching RJ-45 Ethernet ports quantity
- 16
- MAC address table
- 8000 entries
- LED indicators
- Link, Power
- Mean time between failures (MTBF)
- 87600 h
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- JGS516 ProSafe 16 Port Gigabit Rackmount Switch
- Part numbers
- JGS516NA, JGS516GE, JGS516UK
- EAN / UPC
- 6064490363988, 606449036367, 4055895207115, 6064490363674 +4 more
- Also known as
- NETGEAR JGS516 ProSafe 16 Port Gigabit Rackmount Switch
Specifications
18 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 2 MB |
Design
| Specification | Value |
|---|---|
| LED indicators | Link, Power |
| Safety | UL listed (UL 1950)/cUL, IEC950/EN60950 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 87600 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 25 W |
Other features
| Specification | Value |
|---|---|
| Latency | 20 µs max |
| Dimensions (WxDxH) | 330 x 207 x 43 mm |
| Power requirements | 100~240V; 50-60Hz |
| Electromagnetic emissions | CE mark, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22), Class A, EN 50082-1, EN 55024, C-Tick |
| I/O ports | 16x RJ-45 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
