NETGEAR GSM7328S Managed L3 Power over Ethernet (PoE) Grey
Model GSM7328SPart no. GSM7328S-200NASEAN 168141532146
72 specifications
- ProcessorPowerPC MPC8633
- Memory256 MB
- ConnectivityWired
- Noise44 dB
- Weight6.3 kg
- ColourGrey
Overview
- Processor
- PowerPC MPC8633
- Memory
- 256 MB
- Connectivity
- Wired
- Noise
- 44 dB
- Weight
- 6.3 kg
- Colour
- Grey
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GSM7328S
- Part number
- GSM7328S-200NAS
- EAN / UPC
- 168141532146, 606449067972, 798442026985, 6064490679720
- Also known as
- NETGEAR GSM7328S Managed L3 Power over Ethernet (PoE) Grey
Specifications
72 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |

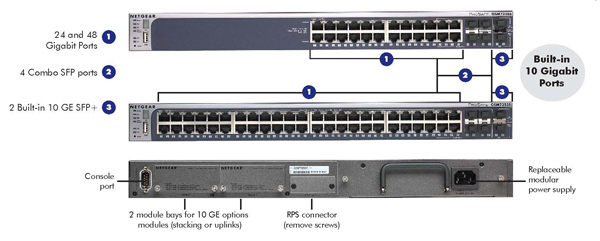

Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| SFP+ module slots quantity | 2 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| IP address table | 128 |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 1024 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-FX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000/10000Mbps |
| Switching capacity | 144 Gbit/s |
| Throughput | 107.1 Mpps |
| Store-and-forward | Yes |
| Number of trunks | 64 |
| Number of queues | 8 |
| Number of static routes | 224 |
| Jumbo frames support | Yes |
| Packet buffer memory | 6 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1, v2c, v3 |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Safety | CE, CSA 22.2 #950, UL 1950 / EN 60950 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC MPC8633 |
| Processor frequency | 666 MHz |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 44 dB |
| Mean time between failures (MTBF) | 211069 h |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 65.64 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Latency | 2.0 μs |
| Dimensions (WxDxH) | 440 x 43 x 391 mm |
| Connectivity technology | Wired |
| Authentication method | IEEE 802.1x, TACACS+ |
| Input frequency | 50 - 60 Hz |
| Networking features | Gigabit Ethernet, 10G |
| Power LED | Yes |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 260.49 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE FCC Part 15 Class A, VCCI Class A Class A EN 55022 (CISPR 22) Class A Class A C-Tick EN 50082-1 EN 55024 |
