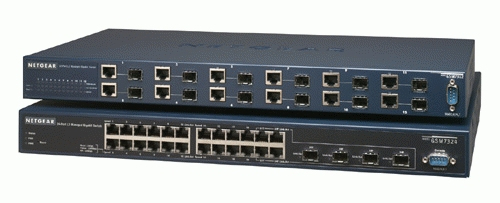

NETGEAR GSM7312
Model GSM7312Part no. GSM7312EUEAN 606449030679
22 specifications
- Memory128 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight3.97 kg
- Basic switching RJ-45 Ethernet ports quantity24
- Networking standardsIEEE 802.1x, IEEE 802.3x
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 3.97 kg
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Networking standards
- IEEE 802.1x, IEEE 802.3x
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GSM7312
- Part number
- GSM7312EU
- EAN / UPC
- 606449030679, 606449033236, 6064490306794, 8032976000601
- Also known as
- NETGEAR GSM7312
Specifications
22 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Maximum data transfer rate | 1 Gbit/s |
Design
| Specification | Value |
|---|---|
| LED indicators | Link |
| Safety | CE mark, commercial, CSA certified (CSA 22.2 #950), TUV licensed (EN 60 950), UL listed (UL 1950)/CUL IEC950/EN60950 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 166600 h |
Other features
| Specification | Value |
|---|---|
| Latency | 20 µs |
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 440 x 258 x 43 mm |
| Connectivity technology | Wired |
| Power requirements | Power Adapter |
| Electromagnetic emissions | CE mark, commercial, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22), Class A, C-Tick |
| I/O ports | 12 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 12 small form-factor pluggable (SFP) modules for fiber Gigabit Ethernet interfaces RS-232 Console Port |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.97 kg |
