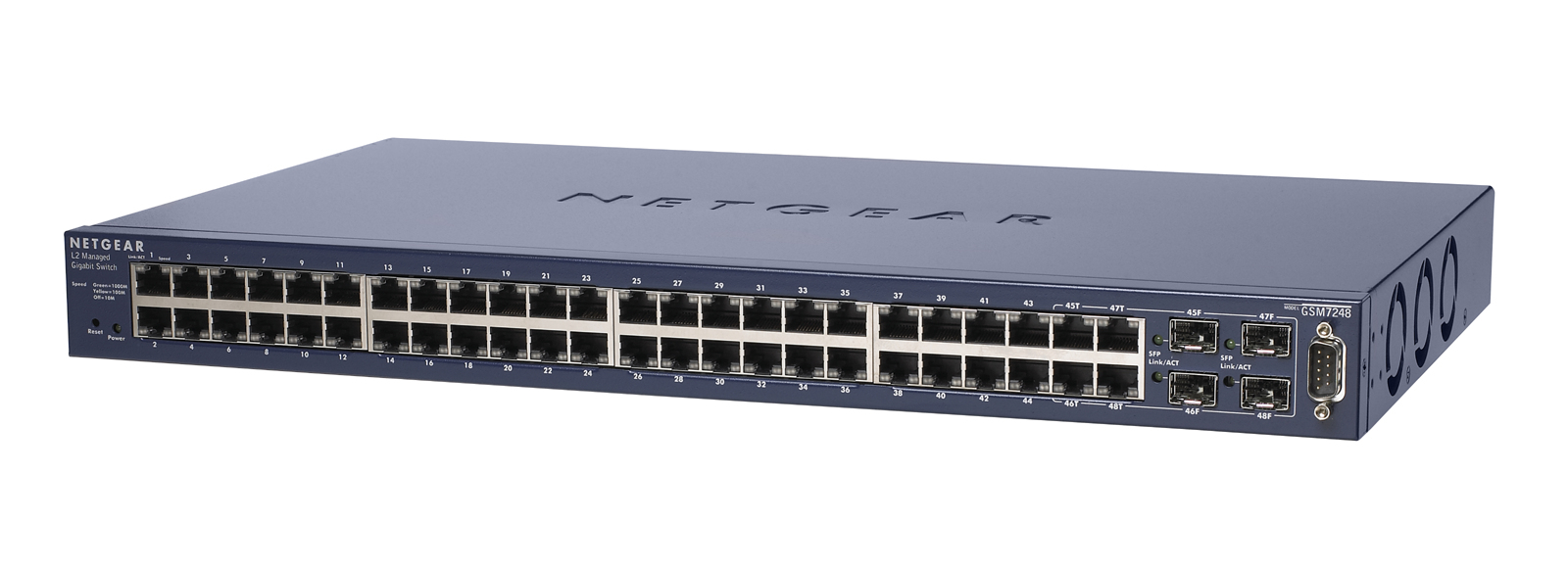

NETGEAR GSM7248 Managed L3 Power over Ethernet (PoE) Black
Model GSM7248Part no. GSM7248-200NASEAN 606449069181
50 specifications
- Memory128 MB
- Speed1 Gbit/s
- Weight4.15 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Weight
- 4.15 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GSM7248
- Part number
- GSM7248-200NAS
- EAN / UPC
- 606449069181, 6064490691814
- Also known as
- NETGEAR GSM7248 Managed L3 Power over Ethernet (PoE) Black
Specifications
50 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Number of VLANs | 1024 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Number of trunks | 64 |
| Number of queues | 8 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1, v2c, v3 |
| Supported network protocols | SNTP, TFTP, SFTP, HTTP, SCP |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Black |
| LED indicators | LAN, Power, Status |
| Safety | UL/cUL 60950-1, EN 60950-1, CE |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 71.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Latency | 20 us |
| Dimensions (WxDxH) | 440 x 205 x 43 mm |
| Bandwidth | 96 Gbit/s |
| Networking features | Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 244.101 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.15 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE mark EN 55022 Class A - Emissions EN 55024 - Immunity FCC Part 15 Class A VCCI Class A C-Tick |
