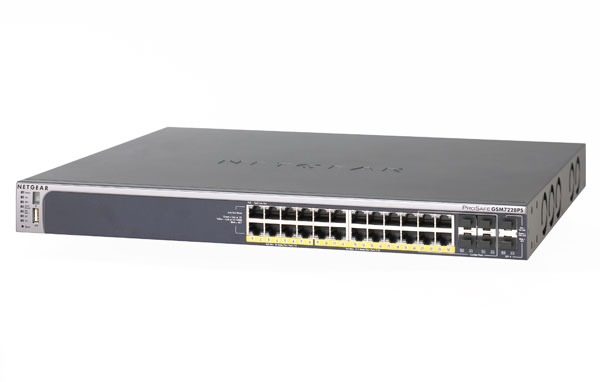

NETGEAR GSM7228PS-100EUS network switch Managed L2+ Power over Ethernet (PoE) Grey
Model GSM7228PS-100EUSEAN 606449071689
42 specifications
- Speed20 Gbit/s
- ConnectivityWired
- Weight6.3 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 20 Gbit/s
- Connectivity
- Wired
- Weight
- 6.3 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GSM7228PS-100EUS
- Part number
- GSM7228PS-100EUS
- EAN / UPC
- 606449071689
- Also known as
- NETGEAR GSM7228PS-100EUS network switch Managed L2+ Power over Ethernet (PoE) Grey
Specifications
42 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 1 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 2 |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 20 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 545 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 391 x 43 mm |
| Connectivity technology | Wired |
| Power requirements | AC 100 - 240 V, 50/60 Hz |
| Connectivity LEDs | Yes |
| Non-operating relative humidity (non-condensing) | 0 - 95% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.3 kg |
What people say
Reviews & ratings
NETGEAR GSM7228PS-100EUS network switch Managed L2+ Power over Ethernet (PoE) Grey
No reviews yet
Be the first to tell others how NETGEAR GSM7228PS-100EUS network switch Managed L2+ Power over Ethernet (PoE) Grey works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NETGEAR GSM7228PS-100EUS network switch Managed L2+ Power over Ethernet (PoE) Grey
All network switch comparisons- NETGEAR GSM7228PS-100EUS network switch Managed L2+ Power over Ethernet (PoE) Grey vsNETGEAR GSM7252PS-100EUS network switch Managed L3 Power over Ethernet (PoE) GreyCompare specs

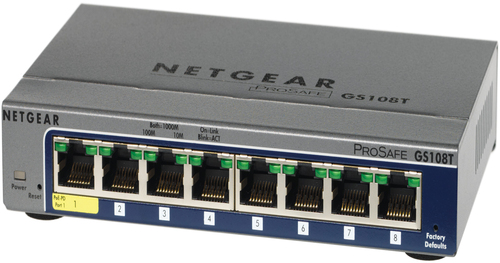

- NETGEAR GSM7228PS-100EUS network switch Managed L2+ Power over Ethernet (PoE) Grey vsNETGEAR GS108T-200 Managed L2 Gigabit Ethernet (10/100/1000) GreyCompare specs
